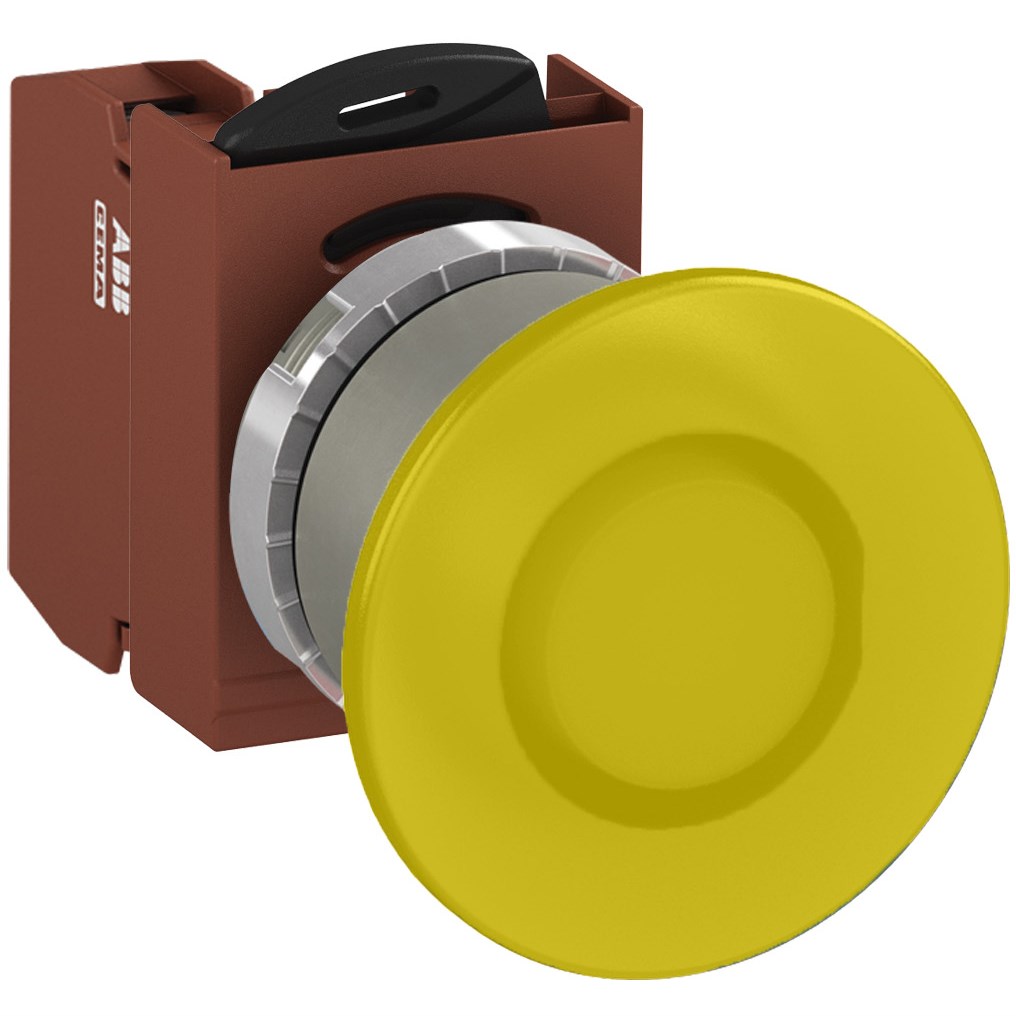

ABB MMMIY4ASP010 Illuminated Pushbutton Kit 40mm Mushroom Maintained Yellow 6VAC/DC 1NO Screw Power Supply

Product Code: MMMIY4ASP010

  • Illuminated 40mm yellow mushroom actuator
  • IP66 protection for harsh environments
  • Operates in -30 to 70°C temperature range
  • Suitable for mining and heavy industry use
  • Includes operator, contact block, and lamp
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
LED Block Rated Voltage 6 VAC/DC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Yellow
Connection Type Screw
Contact Configuration 1NO
Cutout Size 40 mm
Degree of Protection IP66
Diameter 40 mm
Function Maintained
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Yellow
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 6 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
