Specifications

Contacts	2NO
LED Block Rated Voltage	110 VAC
Bezel Material	Metal

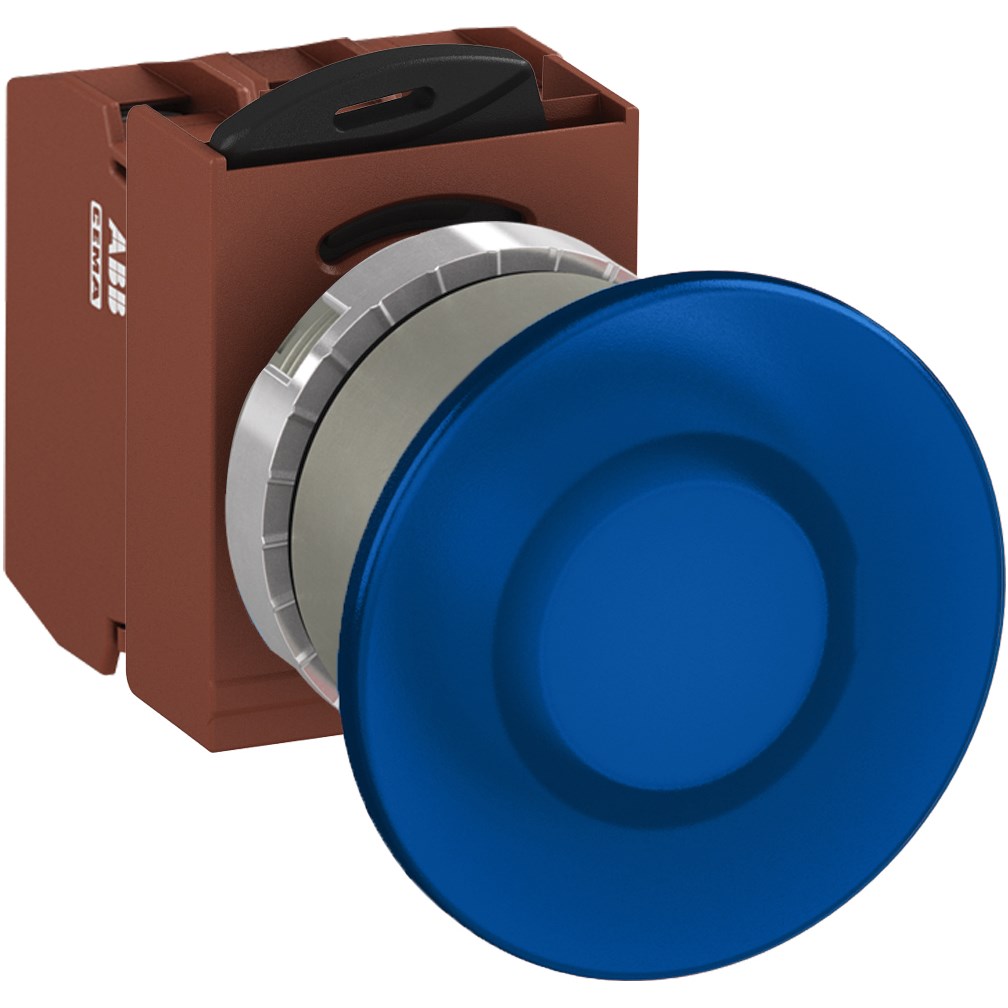

Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Mushroom
Ambient Temperature	-30 to 70 deg C
Application	For mining, construction and heavy industry applications
Bezel Material	Metal
Colour	Blue
Connection Type	Screw
Contact Configuration	2NO
Cutout Size	40 mm
Degree of Protection	IP66
Diameter	40 mm
Function	Momentary
Illumination	Illuminated
Includes	Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour	Blue
Lamp Type	LED
Light Blocks Type	LED Block
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	110 VAC/DC
Standards and Approvals	EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
