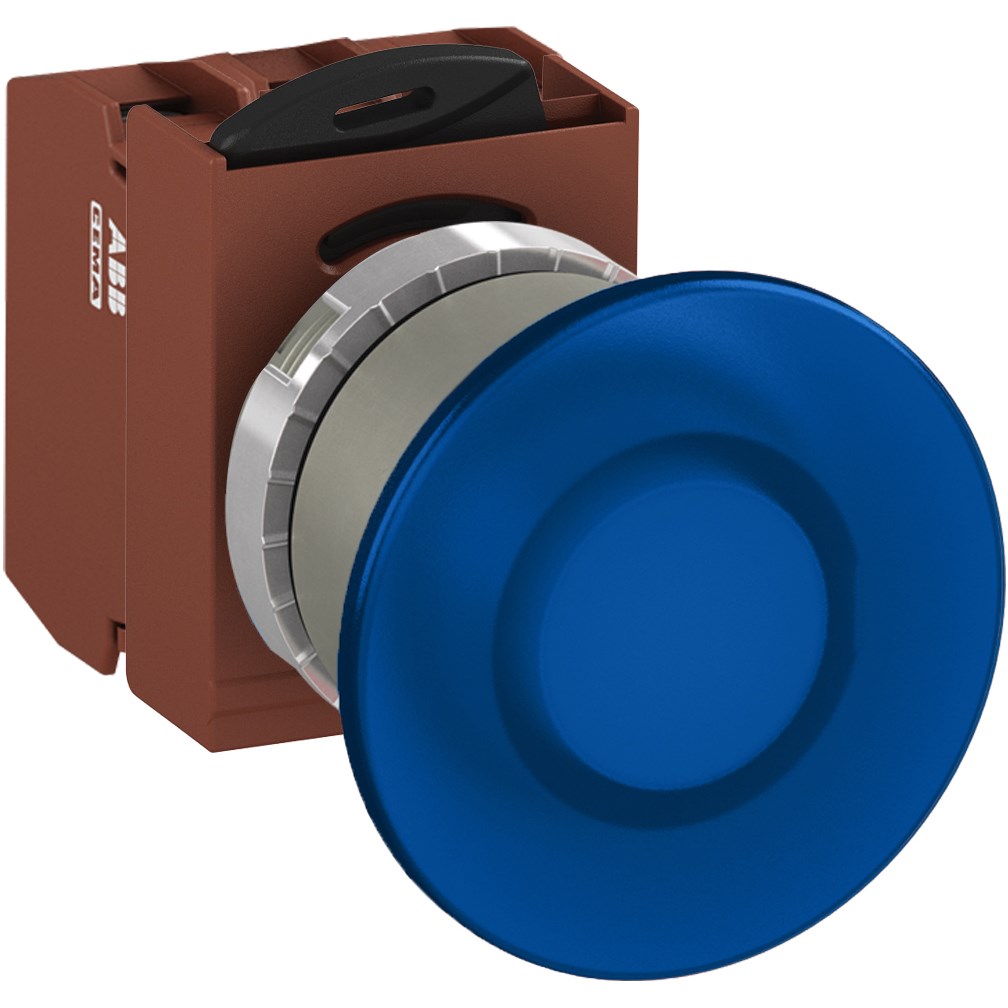

ABB MMMIL4OFP602 Illuminated Pushbutton Kit 40mm Mushroom Momentary Blue 230VAC/DC 2NC Faston Power Supply

Product Code: MMMIL4OFP602

  • Operates on 230 VAC/DC, illuminated for visibility
  • IP66 protection for harsh environments
  • Suitable for mining and heavy industry use
  • Wide temp range: -30 to 70°C
  • Durable metal bezel with 40mm cutout
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Connection Type Faston
Contact Configuration 2NC
Cutout Size 40 mm
Degree of Protection IP66
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Blue
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
