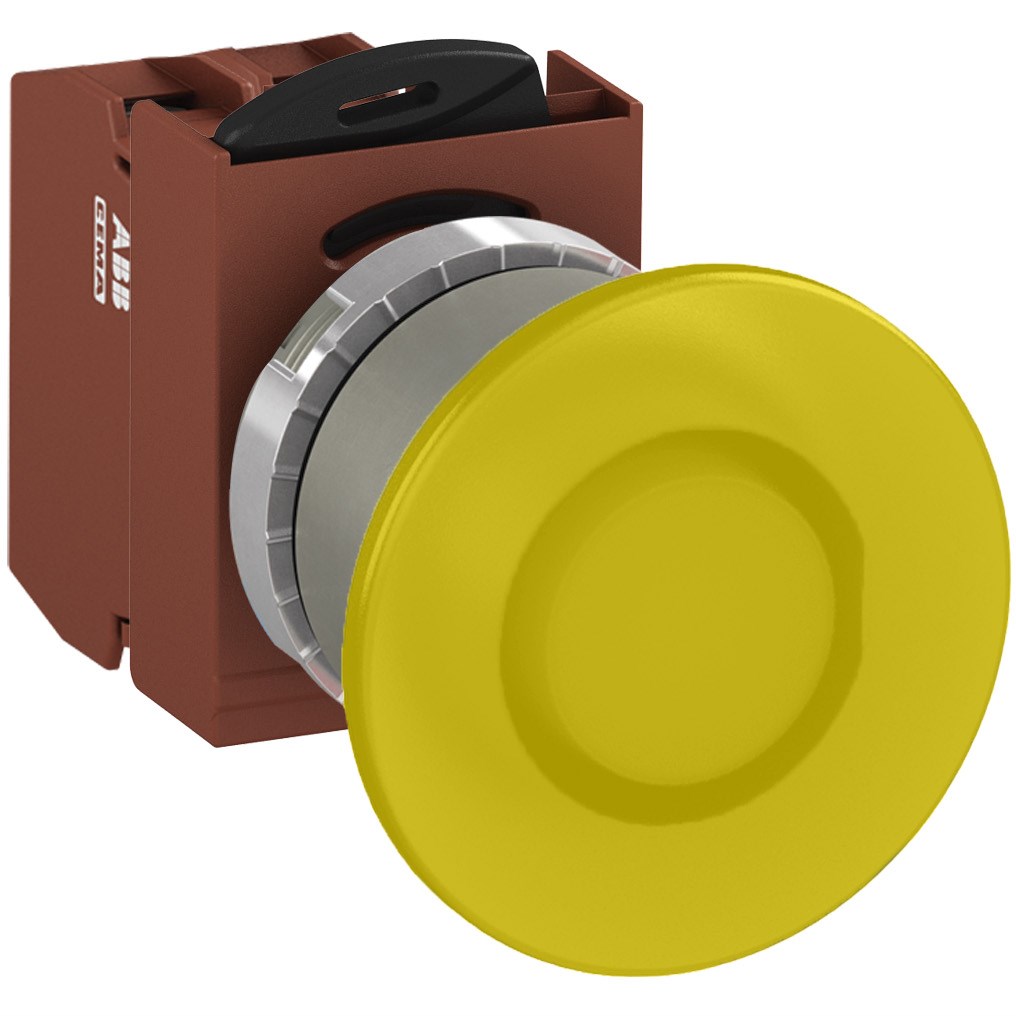

ABB MMMIY4OSL410 Illuminated Pushbutton Kit 40mm Mushroom Momentary Yellow 230VAC/DC 1NO Screw LED Block

Product Code: MMMIY4OSL410

  • Illuminated mushroom actuator, 40 mm diameter
  • IP66 protection for harsh environments
  • Operates in -30 to 70°C temperature range
  • LED lamp in yellow for clear visibility
  • Suitable for mining and heavy industry use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
LED Block Rated Voltage 230 VAC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Yellow
Connection Type Screw
Contact Configuration 1NO
Cutout Size 40 mm
Degree of Protection IP66
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour Yellow
Lamp Type LED
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
