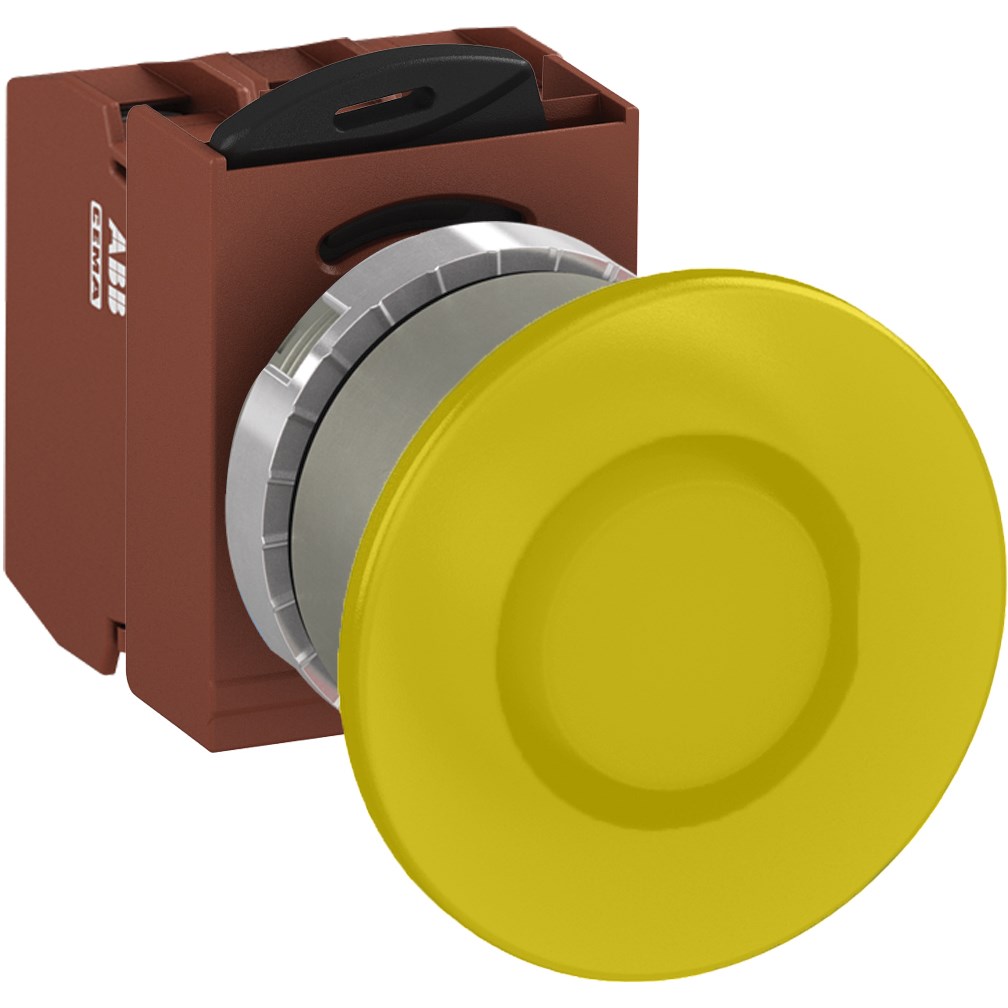

ABB MMMIY4OSP602 Illuminated Pushbutton Kit 40mm Mushroom Momentary Yellow 230VAC/DC 2NC Screw Power Supply

Product Code: MMMIY4OSP602

  • 230 VAC/DC rated, IP66 protection
  • Operates in -30 to 70°C environments
  • Mushroom actuator with yellow illumination
  • Screw connection for easy installation
  • Suitable for mining and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Connection Type Screw
Contact Configuration 2NC
Cutout Size 40 mm
Degree of Protection IP66
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Yellow
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
