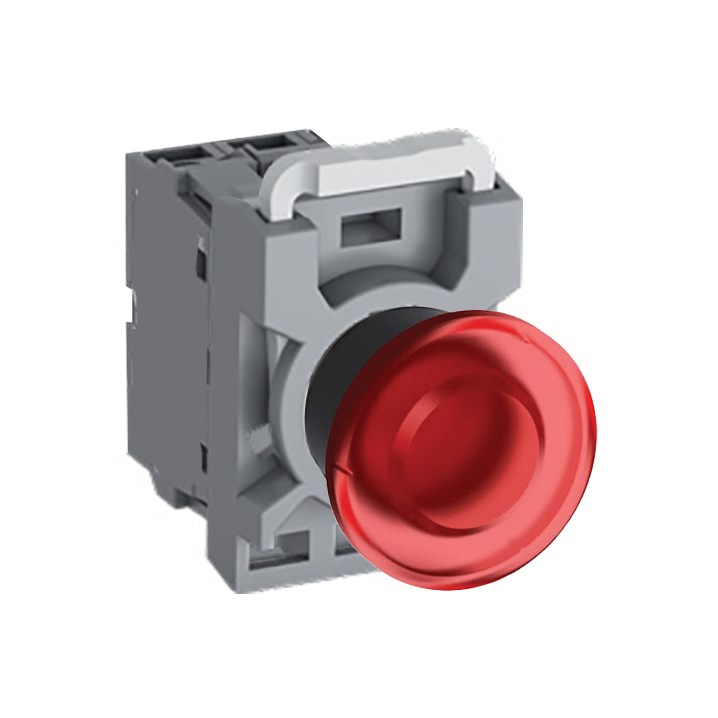

ABB MPMI4R301 Illuminated Pushbutton Kit 40mm Momentary Red 220VDC 1NC

Product Code: MPMI4R301

  • Illuminated pushbutton with red LED
  • Operates at -25 to 70°C
  • IP66 front protection rating
  • Rated voltage of 220 VDC
  • Includes operator, contact block & LED block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
Rated Voltage DC (V) 220
LED Block Rated Voltage 220 VDC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Bezel Material Plastic
Colour Red
Contact Configuration 1NC
Cutout Size 40 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Red
Lamp Type LED
LED Colour Red
Mode of Operation Momentary
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Mushroom Pushbutton Kit is a red, momentary switch with a 40mm diameter. It features an integrated red LED and operates at 220 VDC. The switch has 1 normally closed contact (1NC). The kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
