Specifications

Contacts	1NO + 1NC
LED Block Rated Voltage	220 VDC
Bezel Material	Plastic

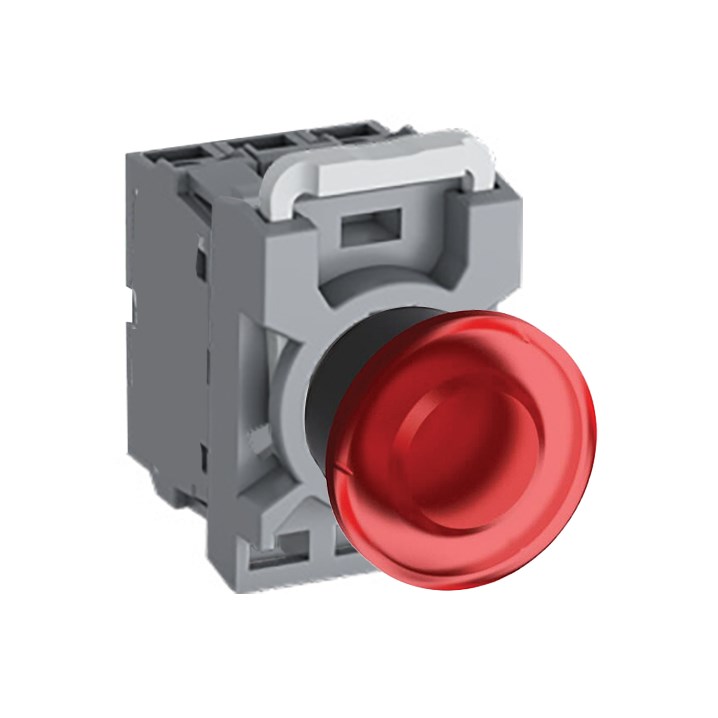

Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Mushroom 40mm
Bezel Material	Plastic
Colour	Red
Contact Configuration	1NO+1NC
Cutout Size	40 mm
Degree of Protection	IP66 Front, IP20 Terminal
Diameter	40 mm
Function	Momentary
Illumination	Illuminated
Includes	Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour	Red
Lamp Type	LED
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	220 VDC
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14
