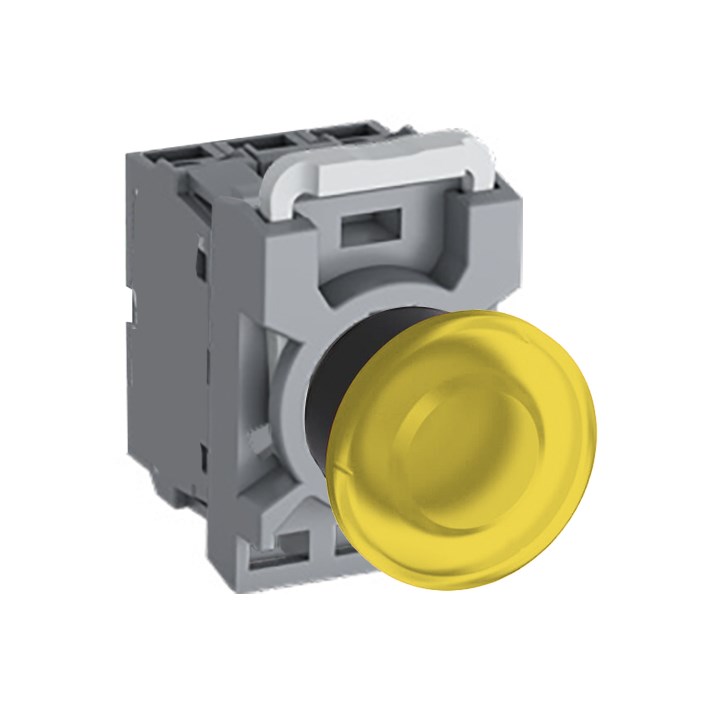

ABB MPMI4Y302 Illuminated Pushbutton Kit 40mm Momentary Yellow 220VDC 2NC

Product Code: MPMI4Y302

  • 220 VDC illuminated LED with yellow lamp
  • IP66 front protection, IP20 terminal
  • Operates in -25 to 70°C range
  • Complies with EN, UL, CSA standards
  • Momentary function with 2NC contacts
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
LED Block Rated Voltage 220 VDC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Bezel Material Plastic
Colour Yellow
Contact Configuration 2NC
Cutout Size 40 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Yellow
Lamp Type LED
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14
