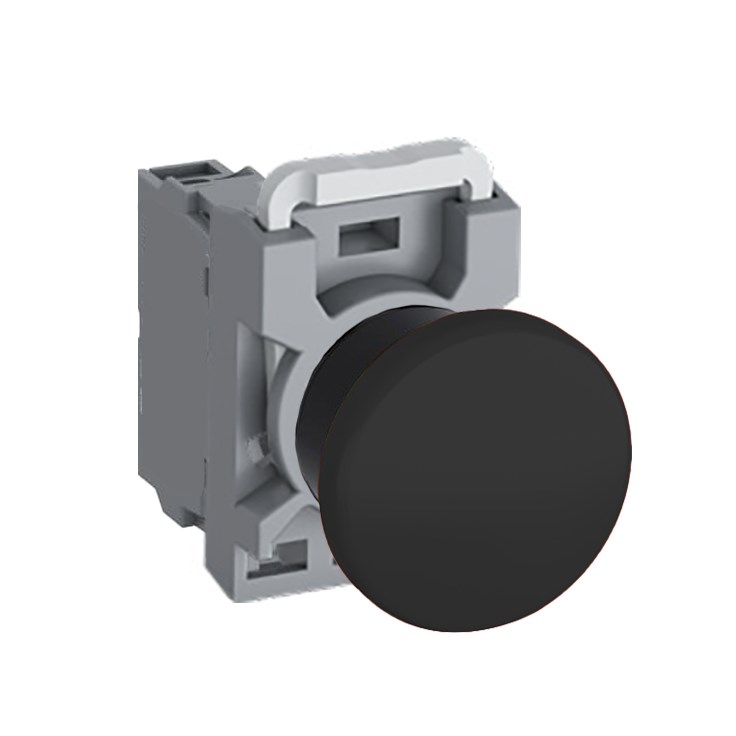

ABB MPMN4B10 Non-Illuminated Pushbutton 40mm Mushroom Black 1NO

Product Code: MPMN4B10

  • Non-illuminated mushroom actuator
  • IP66 front protection rating
  • Operates in -25 to 70°C range
  • Rated insulation voltage of 690V
  • Includes operator and contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Mushroom Diameter (mm) 40
Rated Frequency (Hz) 50/60
LED Block Rated Voltage Not Applicable
Bezel Material Plastic
Product Type Pushbutton
Brand ABB
Actuator Type Mushroom
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Black
Colour Black
Contact Configuration 1NO
Cutout Size 40 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 40 mm
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This Non-Illuminated pushbutton is designed for engineers and comes in a sleek Black colour. It has a diameter of 40mm and features a 1NO contact configuration. The kit includes an operator, contact blocks, and a contact block holder. This product is part of the Modular plastic range.
