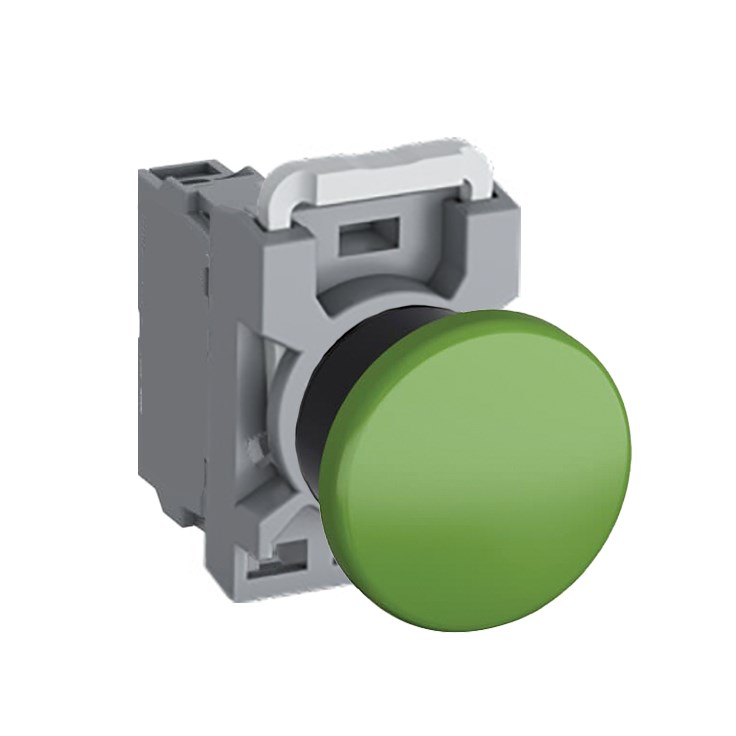

ABB MPMN4G10 Non-Illuminated Pushbutton 40mm Mushroom Green 1NO

Product Code: MPMN4G10

  • Non-illuminated green mushroom actuator
  • IP66 front protection, IP20 terminal
  • Operates in -25 to 70°C temperature range
  • Rated insulation voltage of 690V
  • Includes operator and contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Mushroom Diameter (mm) 40
Rated Frequency (Hz) 50/60
LED Block Rated Voltage Not Applicable
Bezel Material Plastic
Product Type Pushbutton
Brand ABB
Actuator Type Mushroom
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Green
Colour Green
Contact Configuration 1NO
Cutout Size 40 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 40 mm
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This Non-Illuminated Green Pushbutton is a 40mm diameter kit that includes an operator, contact blocks, and a contact block holder. It features a 1NO (Normally Open) contact configuration and belongs to the Modular plastic range.
