Specifications

Contacts	1NO + 1NC
LED Block Rated Voltage	Not Applicable
Bezel Material	Metal

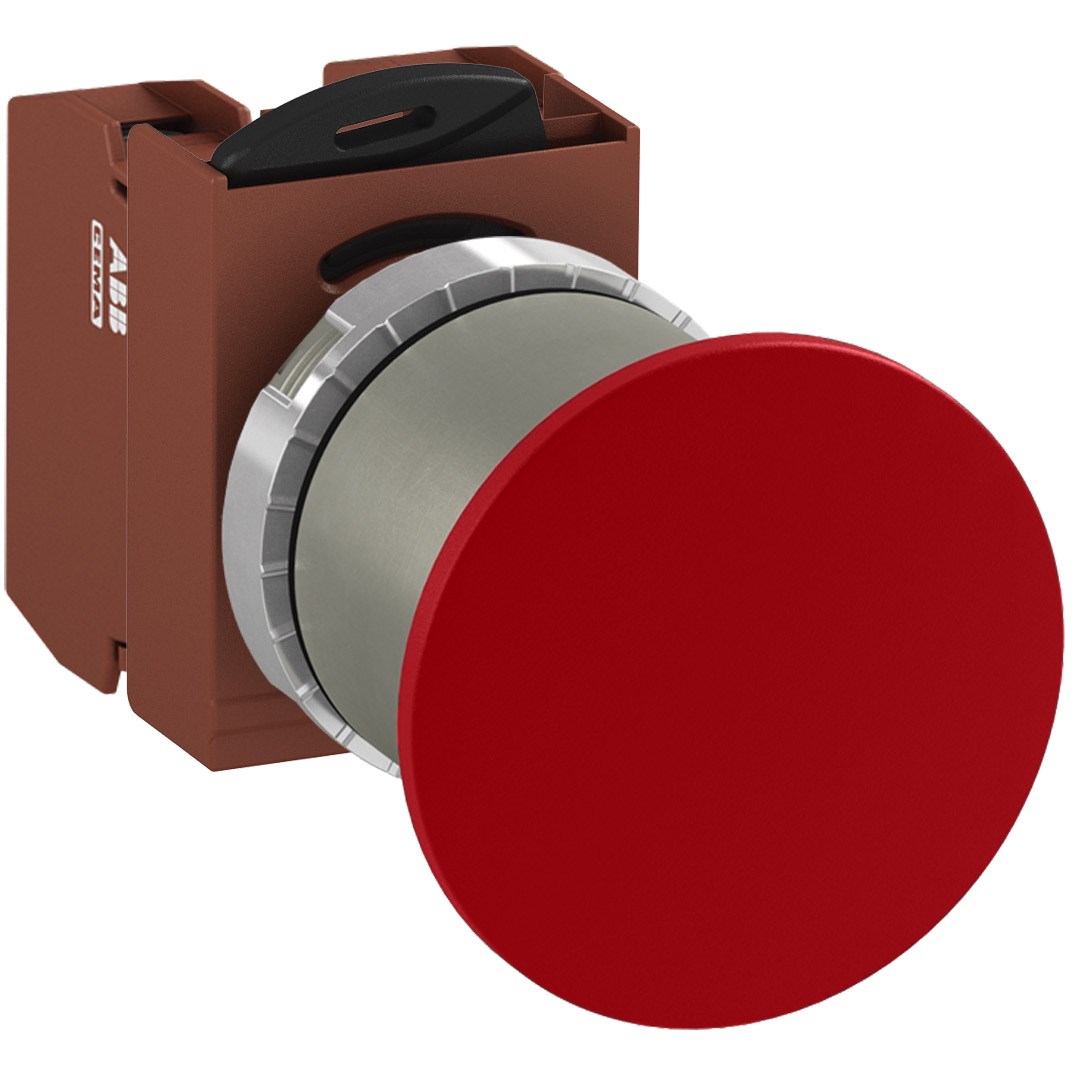

Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Mushroom
Ambient Temperature	-30 to 70 deg C
Application	For mining, construction and heavy industry applications
Bezel Material	Metal
Button Colour	Red
Colour	Red
Connection Type	Screw
Contact Configuration	1NO+1NC
Cutout Size	40 mm
Degree of Protection	IP66
Diameter	40 mm
Function	Maintained
Illumination	Non-Illuminated
Light Blocks Type	Not Applicable
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
