Specifications

Dimensions (mm)	40W x 40D
Reference No.	390551
Thickness (mm)	3
Suitable For	Round Conductor
Weight (kg)	0.58
Class (Lightning Current Carrying Capability) (kA)	100/50
Surface Protection	Untreated
Conductor Diameter (mm)	8
Lightning current load-bearing capacity (10/350µs)	100
Clamping Range Rd/Rd (mm)	8 - 10

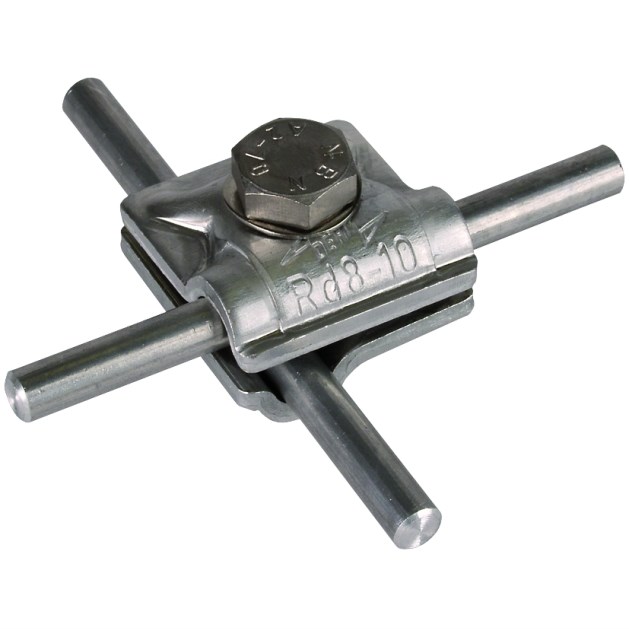

Product Type	MV Clamp With Screw and Spring Washer
Brand	DEHN
Clamping Range	8-10 mm
Conductor Size	8 mm
Connection Type	M10 x 30 mm Screw
Connector Type	T/Cross/Parallel Connector
Depth	40 mm
Finish	Untreated
Lid Screw Type	Hexagon Screw
Lightning Current Carrying Capability	50 kA, 100 kA
Material	Aluminium
Screw Size	M10 x 30mm
Standards and Approvals	EN 62561-1
Suitable For Use With	Round Conductor
Thickness	3 mm
Weight	0.058 kg
Width	40 mm
