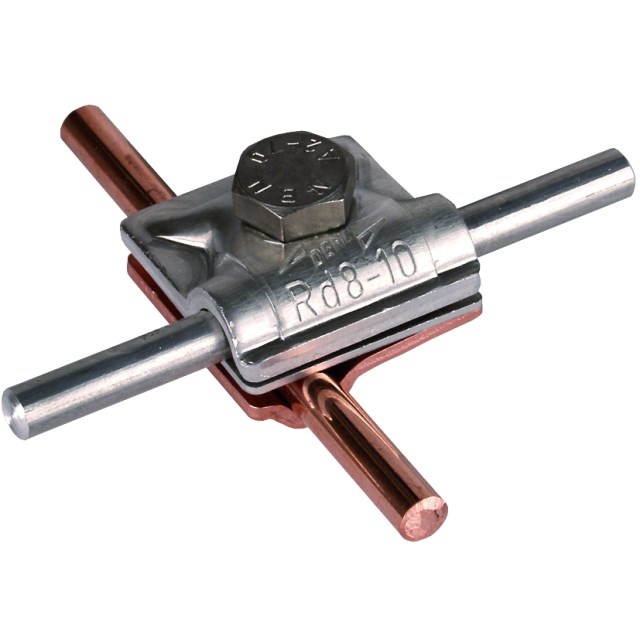

DEHN 390657 MV Clamp W/Hexagon Screw 8-10mm M10 x 30mm Screw Aluminium Copper

Product Code: 390657

  • M10 x 30 mm screw connection
  • Fits round conductors, 8-10 mm range
  • Aluminium & copper materials
  • Handles lightning currents up to 100 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 40W x 40D
Reference No. 390657
Thickness (mm) 3
Suitable For Round Conductor
Weight (kg) 0.1
Class (Lightning Current Carrying Capability) (kA) 100
Type Equipotential Bonding
Surface Protection Untreated
Conductor Diameter (mm) 8
Clamping Range Rd/Rd (mm) 8 - 10
Product Type MV Clamp With Hexagon Screw
Brand DEHN
Clamping Range 8-10 mm
Conductor Size 8 mm
Connection Type M10 x 30 mm Screw
Connector Type T/Cross/Parallel Connector
Depth 40 mm
Finish Untreated
Lid Screw Type Hexagon Screw
Lightning Current Carrying Capability 100 kA
Material Aluminium, Copper
Screw Size M10 x 30mm
Standards and Approvals EN 62561-1
Suitable For Use With Round Conductor
Thickness 3 mm
Weight 0.1 kg
Width 40 mm
