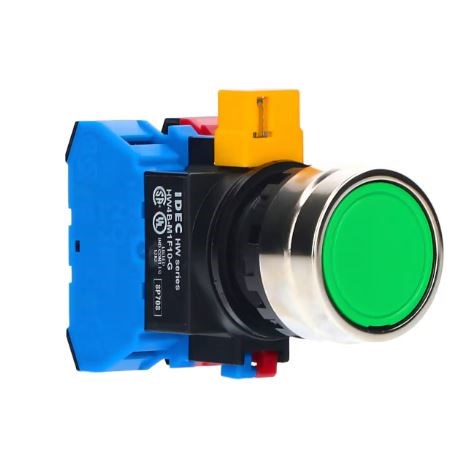

IDEC HW4B-M1F10-G Non-Illuminated Pushbutton Momentary 22mm dia Mounting Hole 1NO

Product Code: HW4B-M1F10-G

  • Non-illuminated, momentary function pushbutton
  • Metal bezel with green colour
  • IP65 front protection for durability
  • 1NO contact configuration
  • Screw terminals for easy connection
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Illuminated Non-Illuminated
Style Flush
Terminal Shape Screw Terminal
Product Type Non-Illuminated Pushbutton
Brand IDEC
Series HW
Bezel Colour Green
Bezel Material Metal
Colour Green
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP3, IP65 Front, IP20 Terminals
Diameter 29 mm
Function Momentary
Illumination Non-Illuminated
Insulation Resistance 100 MOhm
Lamp Colour Green
Material Metal (Bezel)
Operational Temperature -25 to 60 deg C
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Operational Current 10 A
Terminal Type Screw

Description

The IDEC HW4B-M1F10-G is a non-illuminated, momentary pushbutton with a durable metal bezel and a flush green button. Designed for 22mm mounting, it features a single Normally Open (NO) contact for straightforward control in various applications. This pushbutton is part of the robust HW series, ensuring reliable operation in industrial environments.
