Products

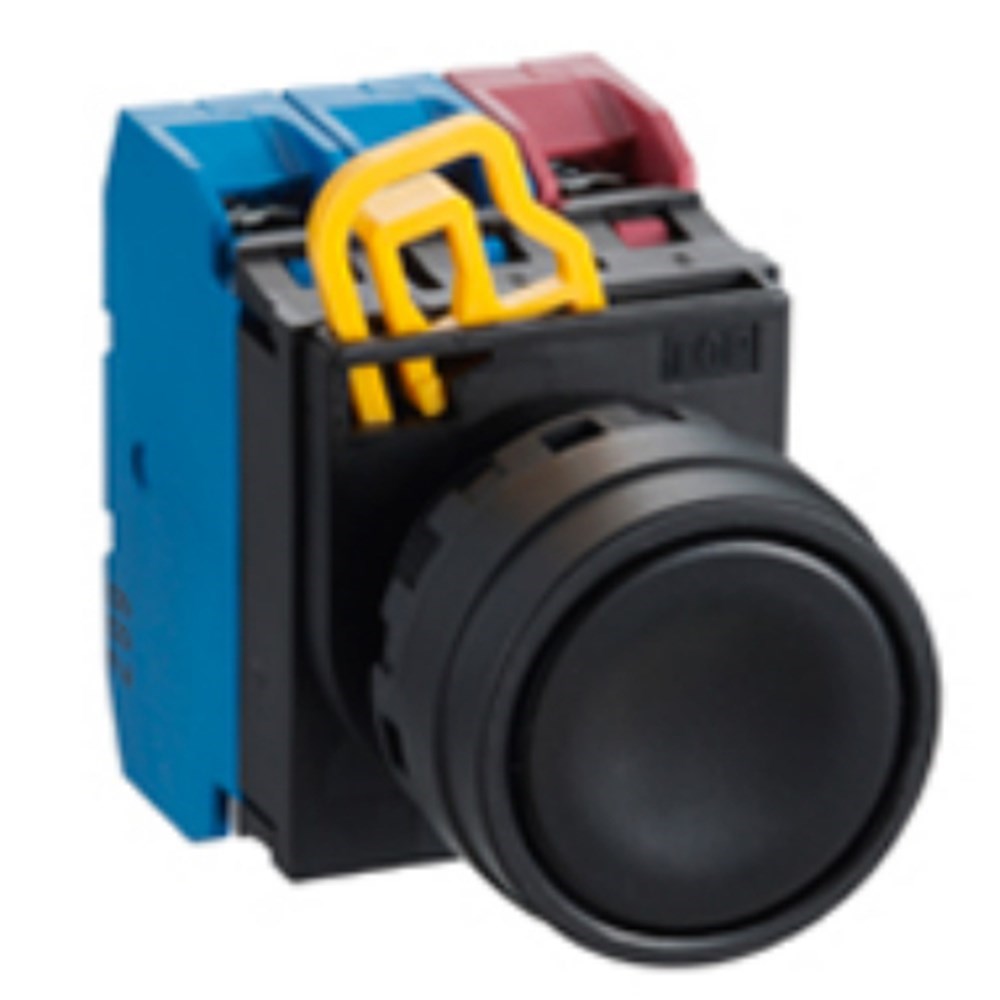

IDECYW1B-M1E01G Non-Illuminated Pushbutton 22mm Flush Momentary Green 1NC

Product Code: YW1B-M1E01G

  • Non-illuminated flush actuator design
  • IP65 front protection, IP20 terminal
  • Rated insulation voltage of 600 V
  • Mechanical life up to 5 million ops
  • Operates in -20 to 55°C environment
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
Conventional Free-Air Thermal Current - Ith (A) Contact Rating - 10
Insulation Resistance (MO) 100
Mounting Hole Diameter (mm) 22
Operational Temperature Range (°C) -20 to +55
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) Contact Rating - 600
Product Type Pushbutton
Brand IDEC
Series YW
Actuator Type Flush
Bezel Material Plastic
Bezel Type Plastic
Button Colour Green
Colour Green
Contact Configuration 1NC
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Depth 56.8 mm
Diameter 22 mm
Function Momentary
Height 41.4 mm
Humidity 45-85%
Illumination Non-Illuminated
Insulation Resistance 100 MOhm
Mechanical Life 5 million Operations Single Contact Block, 1 million Operations Double Contact Block
Mode of Operation Momentary
Operational Temperature -20 to 55 deg C
Rated Continuous Current 10 A
Rated Insulation Voltage 600 V
Shock Resistance 10 g/ms
Standards and Approvals cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Vibration Resistance 5-55 Hz
Width 30 mm

Description

The IDEC YW1B-M1E01G is a non-illuminated, green pushbutton designed for momentary operation. It features a flush design and one normally closed contact (1NC), suitable for 22mm panel mounting. The pushbutton is rated IP20, providing protection against solid objects and enhancing safety with its unexposed terminals.
