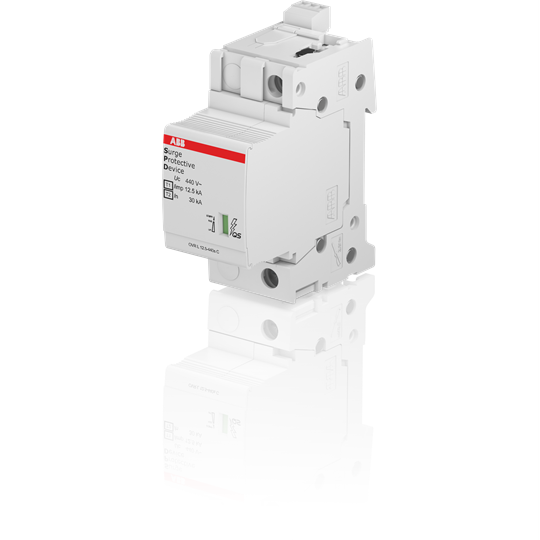

ABB 2CTB815710R2900 Surge Protective Device 12.5kA 1-P 80kA 400/690V Plug-In IP20

Product Code: 2CTB815710R2900

  • Rated for 400/690 V, 80 kA current
  • Plug-in connection for easy installation
  • IP20 protection rating ensures safety
  • Compact design: 35.6mm wide, fits DIN rail
  • Protects systems from transient overvoltage
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 1
Power Loss (W) 0.07
Suitable For To protect the systems against the transient overvoltage (lightning)
Voltage Protection Level - Up (kV) 1.9
Weight (kg) 0.32
Width (mm) 120
Height (mm) 80
Length (mm) 40
No. of Conductors 1
Standards IEC 61643-11 / EN 61643-11
EAN 3660308525055
Product Type Surge Protective Device
Brand ABB
Connection Type Plug-In
Degree of Protection IP20
Depth 76.7 mm
Height 95.8 mm
Lightning Impulse Current 12.5 kA
Mounting Type DIN Rail
Number of Conductors 1
Number of Poles 1
Power Loss 70 mW
Rated Current 80 kA
Rated Short Circuit Current 100 kA
Rated Voltage 400/690 V
Suitable For Use With Protect The Systems Against The Transient Overvoltage (Lightning)
Version Plug-in
Voltage Protection Level 1.9 kV
Weight 0.3 kg
Width 35.6 mm

Description

Surge protective devices SPD type 1- type 2 protect low-voltage consumer systems against lightning currents and surge voltages as they are tested as SPD type 1 and type 2 according to IEC 61643-11. The devices are compatible with the System pro M compact series. The SPD with "TS" are optionally equipped with a auxiliary contact. The variants with "reserve varistor" (s) offer additional protection for the system, as the SPD is not completely disconnected from the mains at the end of its service life, but with an additional smaller varistor still guarantees basic protection and the system thus until the surge arrester is replaced is still protected
