Specifications

Contacts	2NO
Dimensions (mm)	30W X 30H X 55D
Operational Temperature Range (°C)	-25 to +70
Rated Frequency (Hz)	50/60
Maximum Operational Voltage DC (V)	300
Maximum Operational Voltage AC (V)	300
Tightening Torque (Nm)	0.8
Rated Operational Current 240V AC (A)	1
Rated Operational Current 125V DC (A)	0.2
Rated Operational Current 24V DC (A)	0.3
Product Type	Compact Pushbutton
Brand	ABB
Series	CP
Actuator Type	Flush
Ambient Temperature	-25 to 70 deg C
Bezel Colour	Black
Bezel Material	Plastic
Bezel Type	Black Plastic
Button Colour	Black
Colour	Black
Connecting Capacity	Flexible with Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible with Insulated Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible 1/2 x 0.5 - 1.5 sq-mm, Solid 1/2 x 0.5 - 1.5 sq-mm
Connection Type	Screw
Contact Configuration	2NO
Degree of Protection	IP66, 67, 69K Front, IP20 Terminal
Depth	55 mm
Enclosure Type	NEMA 1, 12, 13, 3R, 4, 4X
Function	Momentary
Height	30 mm
Illumination	Non-Illuminated
Mode of Operation	Momentary
Operational Temperature	-25 to 70 deg C
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	300 V
Rated Thermal Current	5 A
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Tightening Torque	1 N-m
Weight	0.022 kg
Width	30 mm
Wire Stripping Length	6 mm

Description

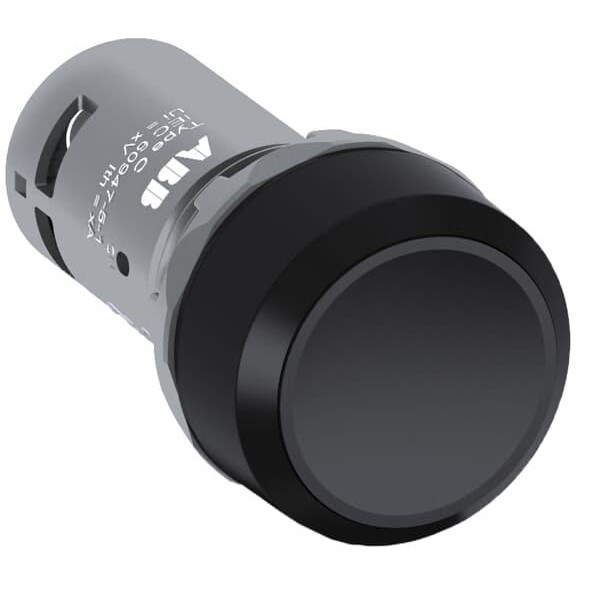

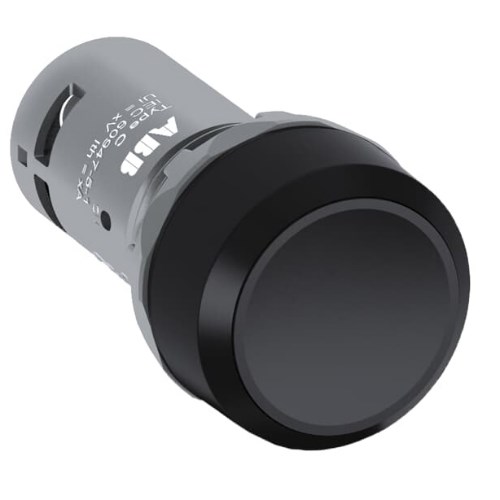

This Non-Illuminated Pushbutton is designed with a Black Momentary Flush style. It features 2NO Contacts and a Compact Range Plastic bezel.
