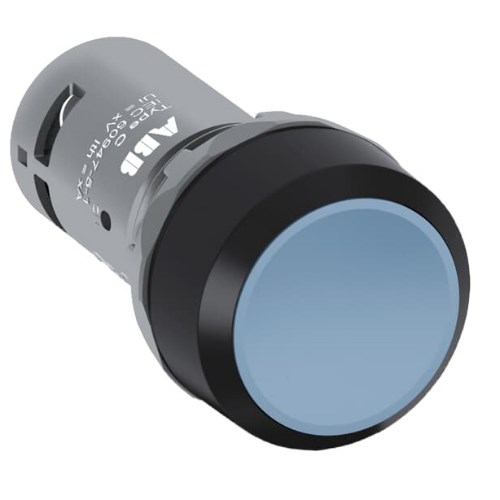

ABB CP1-10L-10 Compact Non-Illuminated Pushbutton Flush Momentary Blue 1NO Screw

Product Code: CP1-10L-10

  • Non-illuminated, flush actuator design
  • High protection: IP66/67/69K front, IP20 terminal
  • Screw terminals with 1 N-m torque
  • Operates in -25 to 70°C range
  • Complies with EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to 70
Dimensions (mm) 30W x 30H x 55D
Power Loss (W) Maximum 2.5W
Pollution Degree 3
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 300
Rated Impulse Withstand Voltage (kV) 6
Rated Operational Current AC-15 240V (A) 1
Tightening Torque (Nm) 0.8
Weight (kg) 0.018
Rated Operational Current DC-13 24V (A) 0.3
Storage Temperature Range (°C) -40 to 85
No. of Normally-open Contacts 1
Wire Stripping Length (mm) 6
Rated Operational Voltage (V) 300
Enclosure Type (NEMA) Type1, Type12, Type13, Type3R, Type4, Type4X
Rated Operational Current DC-13 125V (A) 0.2
Product Type Compact Pushbutton
Brand ABB
Series CP
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Colour Black
Bezel Material Plastic
Button Colour Blue
Colour Blue
Connecting Capacity Flexible with Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible with Insulated Ferrule 1/2 x 0.5 - 1.5 sq-mm, Flexible 1/2 x 0.5 - 1.5 sq-mm, Solid 1/2 x 0.5 - 1.5 sq-mm
Connection Type Screw
Contact Configuration 1NO
Degree of Protection IP66, 67, 69K Front, IP20 Terminal
Depth 55 mm
Enclosure Type NEMA 1, 12, 13, 3R, 4, 4X
Function Momentary
Height 30 mm
Illumination Non-Illuminated
Material Bezel: Black Plastic
Operational Temperature -25 to 70 deg C
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 300 V
Rated Thermal Current 5 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 1 N-m
Weight 0.018 kg
Width 30 mm
Wire Stripping Length 6 mm

Description

The CP1-10L-10 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Blue - Non-illuminated - Black Plastic - 1NO - 1NO - 0NC - 300 V. This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost. The compact range has a high level of dust and water resistance.
