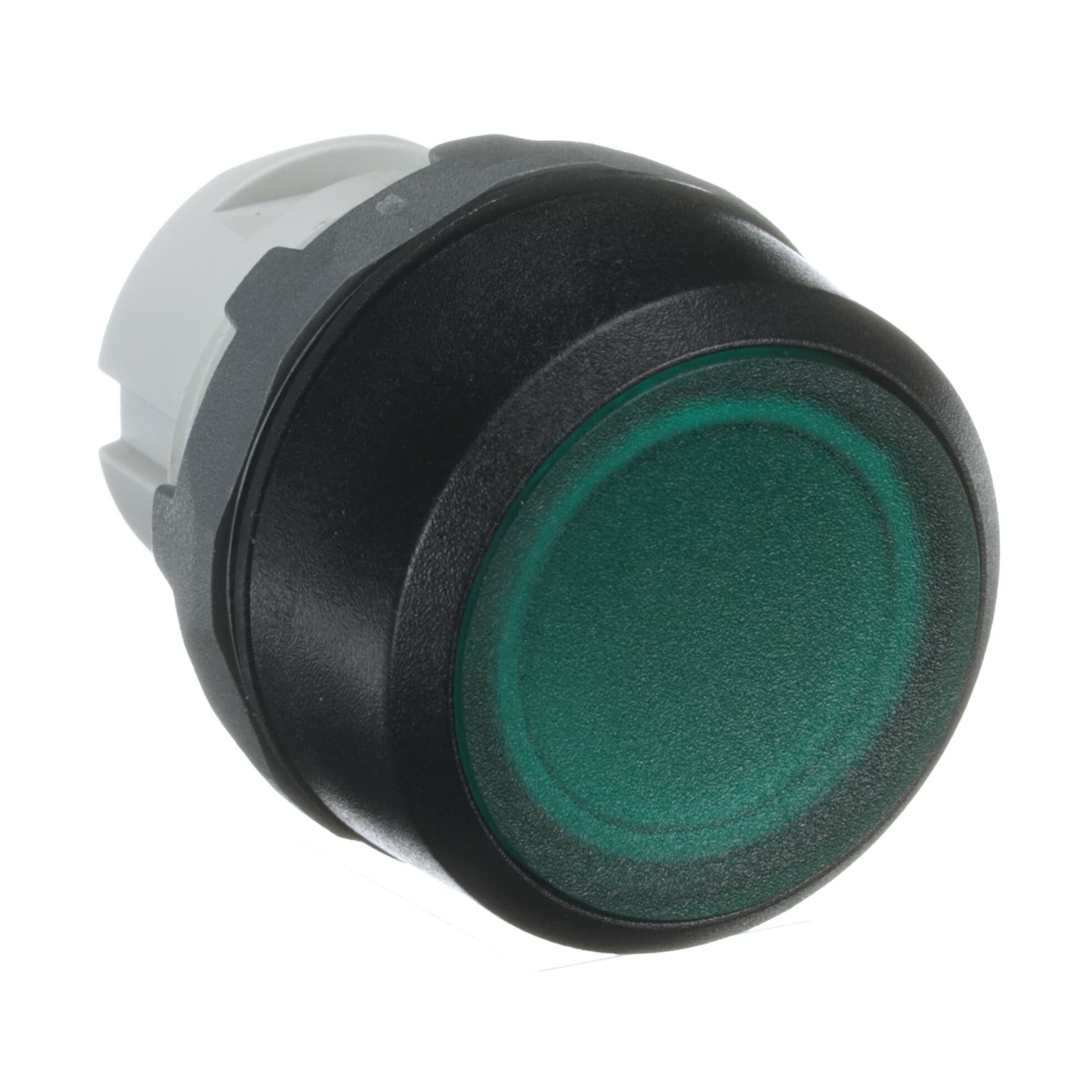

ABB MP2-11G Illuminated Pushbutton Flush Maintained Green

Product Code: MP2-11G

  • Illuminated green flush actuator for clear visibility
  • Compact size: 29x29 mm with 33 mm depth
  • Durable design with IP66 front protection
  • Wide temp range: -25 to 70°C operational
  • Long lifespan: 2 million mechanical operations
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 29W x 29H x 33D
Weight (kg) 0.012
Operational Temperature Range (°C) -25 to 70
Storage Temperature Range (°C) -40 to 85
Enclosure Type (NEMA) Type1, Type12, Type13, Type3R, Type4, Type4X
Product Type Pushbutton
Brand ABB
Actuator Type Flush
Bezel Colour Black
Bezel Material Plastic
Colour Green
Degree of Protection IP66 Front
Depth 33 mm
Enclosure Type NEMA 1, 12, 13, 3R, 4, 4X
Function Maintained
Height 29 mm
Illumination Illuminated
Includes Holder, Contact Block and LED Block are not included
Lamp Colour Green
Material Bezel: Plastic
Mechanical Life 2 million Operations
Mode of Operation Maintained
Operational Temperature -25 to 70 deg C
Range Modular Plastic
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Weight 0.012 kg
Width 29 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
