Specifications

Dimensions (mm)	29W x 29H x 33D
Weight (kg)	0.024
Operational Temperature Range (°C)	-25 to 70
Storage Temperature Range (°C)	-40 to 85
Enclosure Type (NEMA)	Type1, Type12, Type13, Type3R, Type4, Type4X

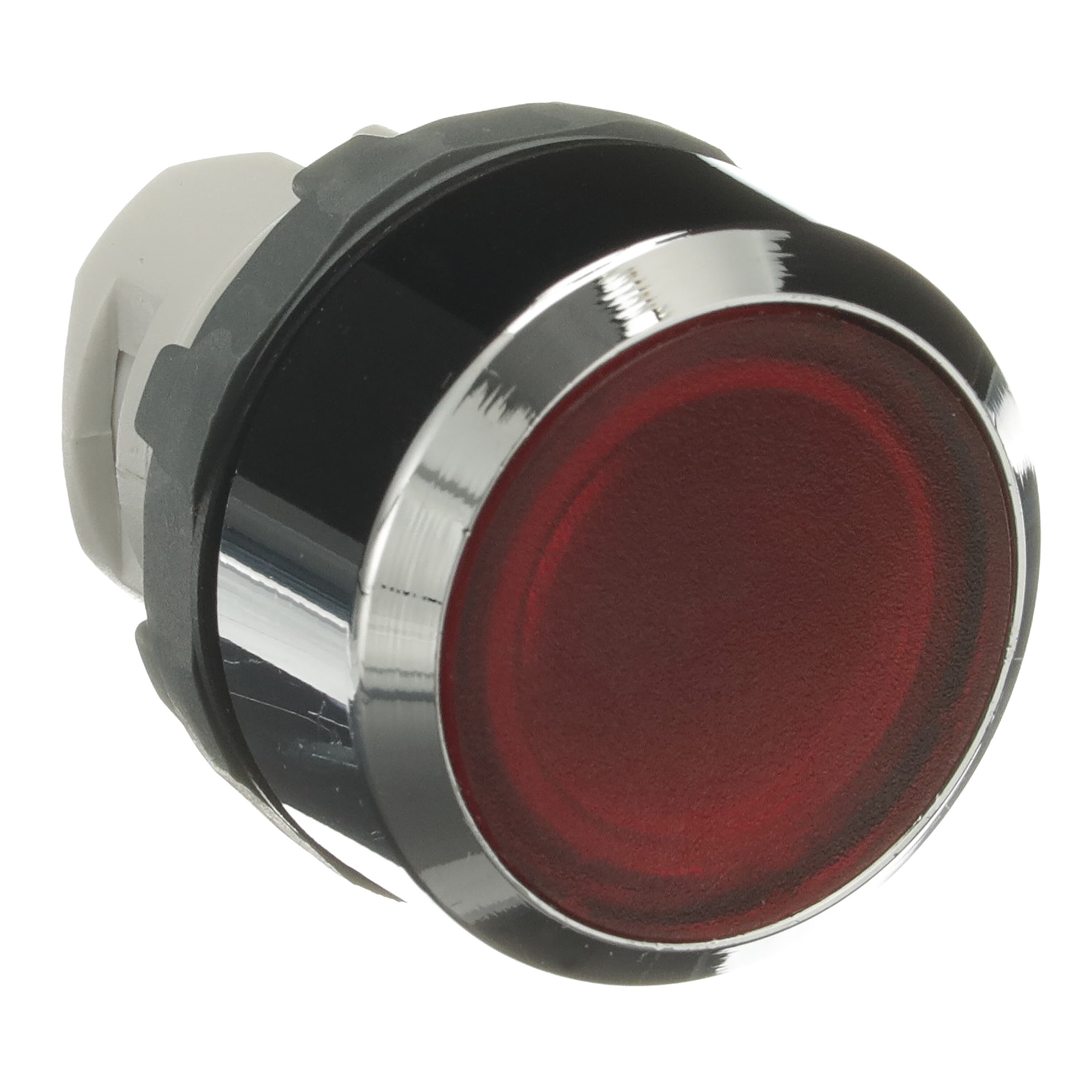

Product Type	Pushbutton
Brand	ABB
Actuator Type	Flush
Bezel Colour	Chrome
Bezel Material	Metal
Colour	Red
Degree of Protection	IP66 Front
Depth	33 mm
Enclosure Type	NEMA 1, 12, 13, 3R, 4, 4X
Function	Momentary
Height	29 mm
Illumination	Illuminated
Includes	Holder, Contact Block and LED Block are not included
Lamp Colour	Red
Lamp Type	LED
Material	Bezel: Chrome Metal
Mechanical Life	2 million Operations
Mode of Operation	Momentary
Operational Temperature	-25 to 70 deg C
Range	Modular Plastic
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Standards and Approvals	IEC / EN 60947-1, IEC / EN 60947-5-1, IEC / EN 60947-5-5, IEC / EN 60073, IEC / EN 60529
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Weight	0.024 kg
Width	29 mm
