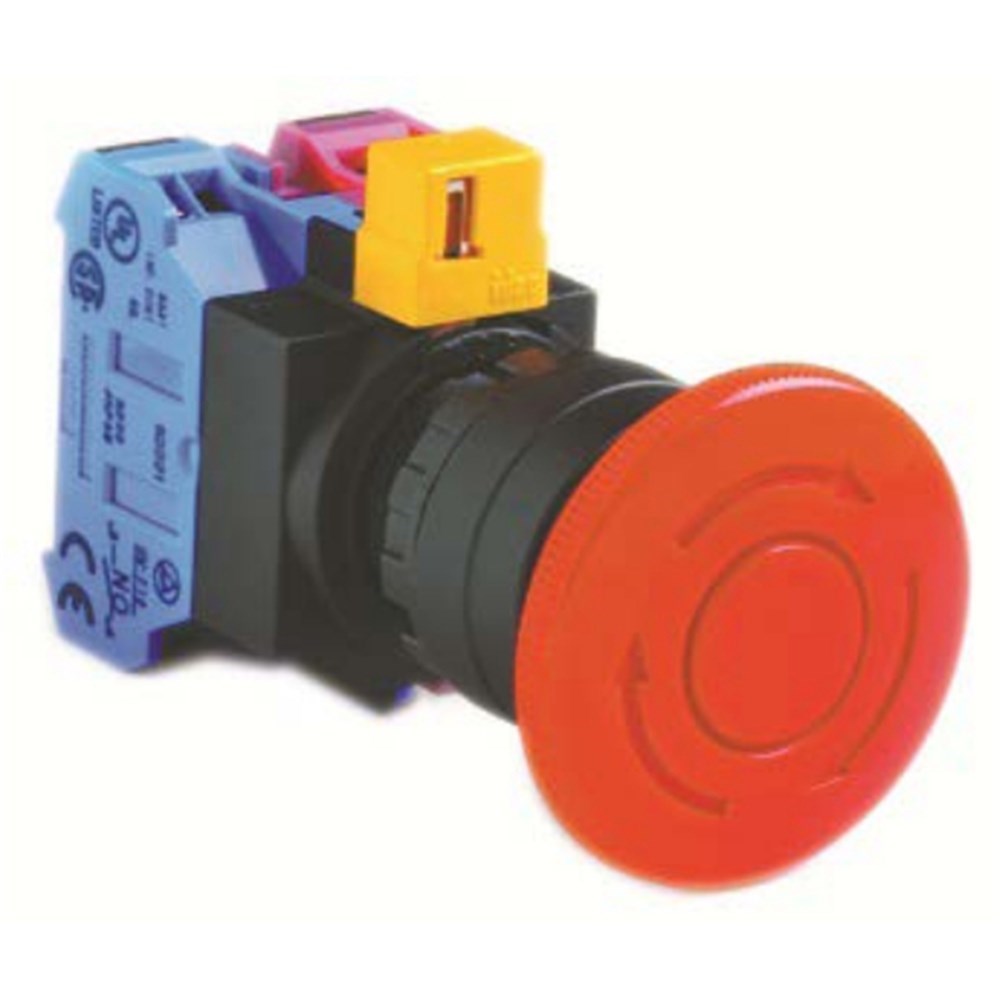

IDECHW1B-M2F01R-K Non-Illuminated Pushbutton 22mm Extended Momentary Red 1NC

Product Code: HW1B-M2F01R-K

  • Non-illuminated, red momentary pushbutton
  • IP65 front protection for harsh environments
  • Screw terminals for secure connections
  • 22 mm diameter with round plastic bezel
  • Rated insulation voltage of 600 V
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
Insulation Resistance (MO) 100
Mounting Hole Diameter (mm) 22
Operational Temperature Range (°C) -25 to + 60
Rated Continuous Current (A) Contact Rating - 10
Pollution Degree 3
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) Contact Rating - 600
Rated Impulse Withstand Voltage (kV) 4
Tightening Torque (Nm) Locking Ring - 2.0
Product Type Pushbutton
Brand IDEC
Series HW
Actuator Type Extended
Bezel Colour Black
Bezel Material Plastic
Bezel Shape Round
Button Colour Red
Colour Red
Contact Configuration 1NC
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Humidity 45-85%
Illumination Non-Illuminated
Insulation Resistance 100 MOhm
Mode of Operation Momentary
Operational Temperature -25 to 60 deg C
Rated Continuous Current 10 A
Rated Insulation Voltage 600 V
Terminal Type Screw

Description

The IDEC HW1B-M2F01R-K is a robust Non-Illuminated Pushbutton featuring an extended momentary function and a single 1NC finger-safe terminal. Its red color and tamperproof design enhance security, while the round shape ensures ergonomic use. This pushbutton kit is engineered for reliability in various industrial applications.
