Specifications

Cable Cross Section (mm²)	0.2
Cable Length (m)	2
Illuminance (lx)	<3000
Insulation Resistance (MO)	2
Rated Supply Voltage DC (V)	12 - 24
Enclosure Material	PBT
Storage Temperature (°C)	-30 to +70
Current Consumption (mA)	<15
Output Operation	Switchable - Light-ON or Dark-ON
Sensing Range (mm)	70 to 300
Mounting Method	Bracket (not included)
Gross Weight (g)	60
Net Weight (g)	50
Ambient Temperature (°C)	-25 to +55
Resistance to Shock (m/s²)	500
Withstand Voltage AC (V)	1000 for 1 min
Response Time (ms)	<1

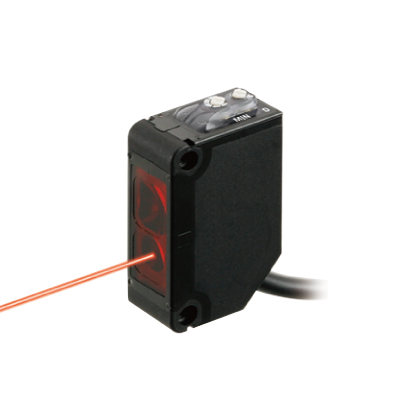

Product Type	Compact Photoelectric Sensor
Brand	PANASONIC
Series	Cx-400
Cable Length	2 m
Cable Type	2-core cabtyre cable
Degree of Protection	IP67
Emitting Element	Red LED
Housing Material	PBT
Humidity	35-85%
Illuminance	<3000 lx
Insulation Resistance	2 MOhm
Mounting Type	Bracket
Operation Indicator	Orange LED ON
Operational Temperature	-30 to 70 deg C
Rated Current	<15 mA
Rated Voltage	12-24 VDC
Relative Humidity	35 to 85%
Response Time	<1 ms
Sensing Range	70-300 mm
Sensor Type	Diffuse Reflective Narrow View
Shock Resistance	500 ms
Standards and Approvals	CE, EMC Directive
Weight	60 g
