  • Panasonic CY-111A-P Cylindrical Photoelectric Sensor 12-24VDC 15m Sensing 2m L Cable NPN-Output

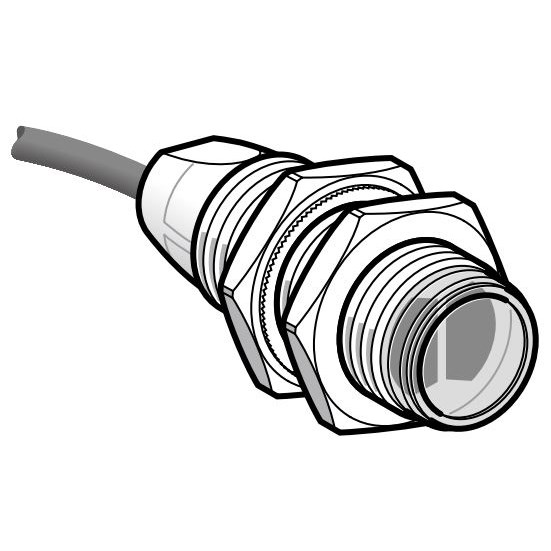

Panasonic CY-111A-P Cylindrical Photoelectric Sensor 12-24VDC 15m Sensing 2m L Cable NPN-Output

Product Code: CY-111A-P

  • 15 m sensing range for extended detection
  • Operates on 12-24 VDC with <35 mA current
  • Durable PBT housing, IP67 protection
  • Fast response time of less than 1 ms
  • Yellow LED indicator for operation status
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Cylindrical Photoelectric Sensor
Brand PANASONIC
Cable Length 2 m
Cable Type 3-core cabtyre cable
Degree of Protection IP67
Housing Material PBT
Humidity 50%
Illuminance 5000 lx
Operation Indicator Yellow LED ON
Operational Temperature -40 to 70 deg C
Output Type NPN
Rated Current <35 mA
Rated Voltage 12-24 VDC
Relative Humidity 50%
Response Time <1 ms
Sensing Range 15 m
Sensor Type Thru-Beam
Shock Resistance 294 ms
Thread Size M18
Utilisation Category D-12 or DC-13
Weight 65 g
