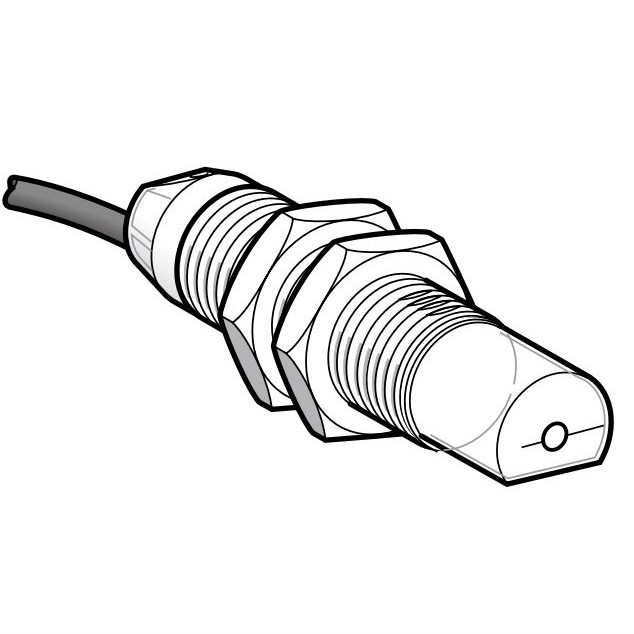

Panasonic CY-121VB-P-Z Cylindrical Photoelectric Sensor 12-24VDC 100mm Sensing M12 Plug-In PNP-Output

Product Code: CY-121VB-P-Z

  • Compact photoelectric sensor with 100 mm range
  • Operates on 12-24 VDC with <35 mA current
  • PNP output and M12 plug-in connection
  • Durable PBT housing, IP67 rated for protection
  • Fast response time of less than 1 ms
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Cylindrical Photoelectric Sensor
Brand PANASONIC
Connection Type M12 Plug-In
Connector Type M12 Plug-in
Degree of Protection IP67
Housing Material PBT
Humidity 50%
Illuminance 5000 lx
Operation Indicator Yellow LED ON
Operational Temperature -40 to 70 deg C
Output Type PNP
Rated Current <35 mA
Rated Voltage 12-24 VDC
Relative Humidity 50%
Response Time <1 ms
Sensing Range 100 mm
Sensor Type Diffuse Reflective
Shock Resistance 294 ms
Thread Size M18
Utilisation Category D-12 or DC-13
Weight 15 g
