Specifications

Cable Cross Section (mm²)	0.1
Cable Length (m)	2
Dimensions (mm)	10W x 14.5H x 3.5D
Illuminance (lx)	3000
Insulation Resistance (MO)	20
Pollution Degree	3 (Industrial Environment)
Rated Supply Voltage DC (V)	12 to 24
Enclosure Material	Polyarylate
Outputs	PNP
Output Operation	Light-ON
Sensing Range (mm)	150
Storage Temperature (°C)	-30 to +70
Current Consumption (mA)	<10
Withstand Voltage AC (V)	1000 for 1 minute
Response Time (ms)	<0.5
Gross Weight (g)	50
Net Weight (g)	20
Ambient Temperature (°C)	-25 to +55
Resistance to Shock (m/s²)	500

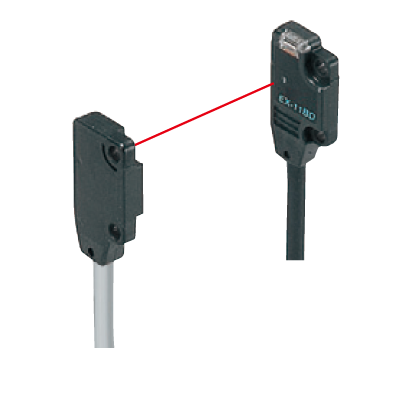

Product Type	Ultra-slim Photoelectric Sensor
Brand	PANASONIC
Cable Length	2 m
Cable Type	2 core cabtyre
Degree of Protection	IP67
Housing Material	Polyarylate
Humidity	35-85%
Illuminance	3000 lx
Insulation Resistance	20 MOhm
Operation Indicator	Orange LED ON
Operational Temperature	-30 to 70 deg C
Output Type	PNP
Rated Current	<10 mA
Rated Voltage	12-24 VDC
Relative Humidity	35 to 85%
Response Time	<0.5 ms
Sensing Range	150 mm
Sensor Type	Standard Thru-Beam Side Sensing
Shock Resistance	500 ms
Utilisation Category	DC-12 or DC-13
Weight	50 g
