Specifications

Cable Cross Section (mm²)	0.15
Cable Length (m)	1
Insulation Resistance (MO)	50
Pollution Degree	3 (Industrial Enviroment)
Rated Supply Voltage DC (V)	12 to 24
Enclosure Material	PBT
Outputs	NPN
Storage Temperature (°C)	-40 to +85
Operating Distance (mm)	1.6
Current Consumption (mA)	<15
Output Operation	Normally Open
Sensing Range (mm)	0 to 1.3
Net Weight (g)	15
Ambient Temperature (°C)	-25 to +70
Resistance to Shock (m/s²)	10000
Withstand Voltage AC (V)	1000 for 1 min

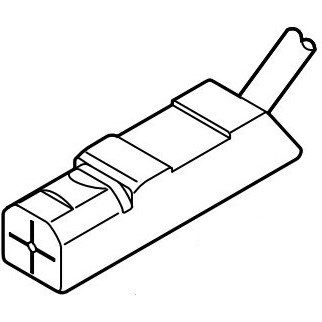

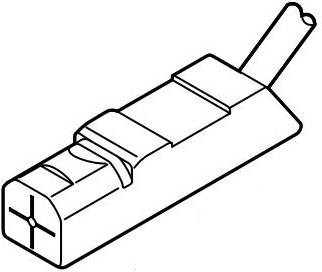

Product Type	Rectangular Inductive Proximity Sensor
Brand	PANASONIC
Cable Length	1 m
Cable Type	3-core oil, heat and cold resistant cabtyre cable
Degree of Protection	IP68, IP68G
Housing Material	PBT
Humidity	35-95%
Insulation Resistance	50 MOhm
Operation Indicator	Orange LED ON
Operational Temperature	-40 to 85 deg C
Rated Current	<15 mA
Rated Voltage	12-24 VDC
Relative Humidity	35 to 95%
Sensing Range	0-1.3 mm
Sensor Type	Top Sensing
Shock Resistance	10000 ms
Utilisation Category	DC-12 or DC-13
Weight	15 g
