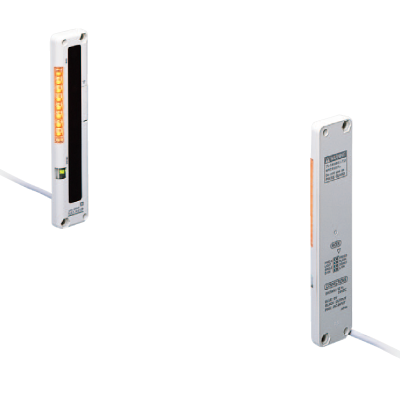

Panasonic NA1-5-PN Ultra-slim Body Picking Sensor 0.1-1.2m Sensing 12-24VDC 2m L Cable

Product Code: NA1-5-PN

  • Sensing range: 0.1-1.2 m
  • Voltage: 12-24 VDC
  • PNP transistor output
  • Durable ABS enclosure
  • IP62 protection rating
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Voltage DC (V) 12 to 24
Sensing Range (m) 0.1 to 1.2
Sensing Height (mm) 100
Product Type Ultra-slim Body Picking Sensor
Brand PANASONIC
Degree of Protection IP62
Housing Material ABS Enclosure, Acrylic Lens Cover, Acrylic Indicator Cover
Humidity 35-85%
Output Type PNP Transistor
Rated Power 0.6 W Emitter, 0.9 W Receiver
Rated Voltage 12-24 VDC
Sensing Range 0.1-1.2 m
Shock Resistance 490 m/sq-s
Vibration Resistance 10-150 Hz
