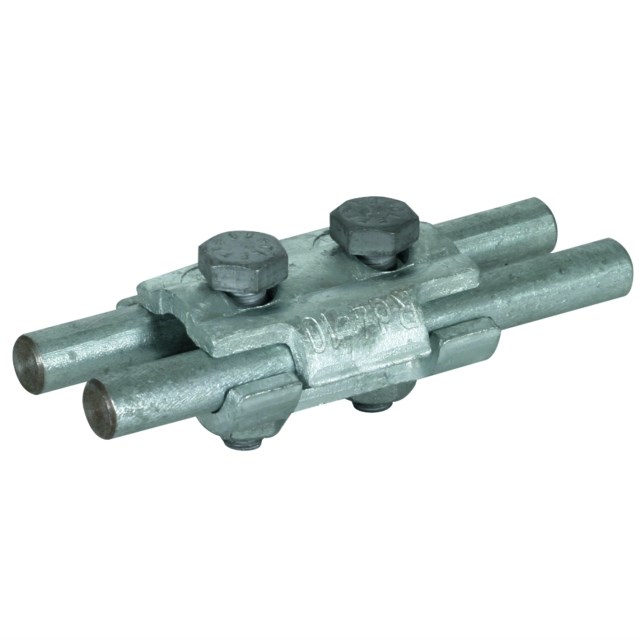

DEHN 305000 Parallel Connector M8 x 30mm Screw 4mm W 5mm H Steel

Product Code: 305000

  • M8 x 30 mm screw connection
  • Steel with hot dip galvanized finish
  • Clamping range of 4-10 mm
  • Lightning current capacity: 100 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 4W x 5H x 4D
Weight (kg) 0.146
Clamping Range (mm) 4 - 10
Surface Protection Hot-dip galvanized
Conductor Diameter (mm) 4
Lightning current load-bearing capacity (10/350µs) 100
Product Type Parallel Connector
Brand DEHN
Clamping Range 4-10 mm
Connection Type M8 x 30 mm Screw
Connector Type Parallel connector
Depth 4 mm
Finish Hot Dip Galvanized
Height 5 mm
Lid Screw Type Hexagon screw
Lightning Current Carrying Capability 100 kA
Material Steel
Standards and Approvals EN 62561-1
Thread Size M8 x 30mm
Weight 146 g
Width 4 mm
