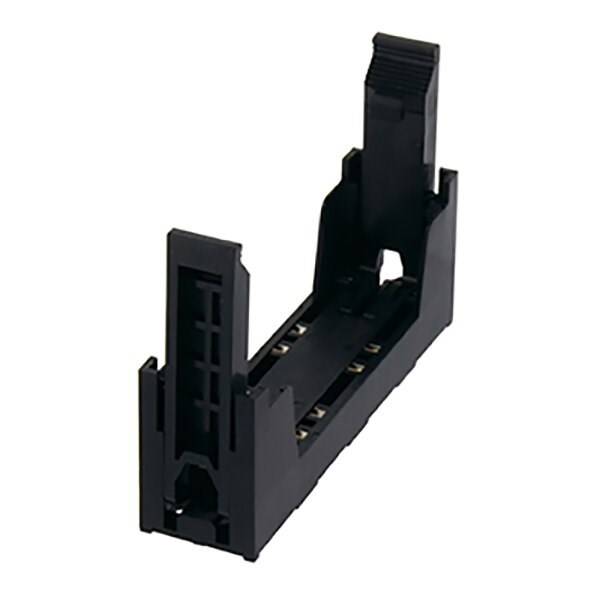

IDEC SF1V-6-61 6 Pole Socket 250VAC/DC PCB Mount

Product Code: SF1V-6-61

  • Suitable for 250 VAC/VDC applications
  • Handles up to 6 A current
  • PCB mounting design
  • IP20 protection rating
  • Operates in -40 to 85°C range
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Insulation Resistance (MO) 1000
No. of Poles 6
Operational Temperature Range (°C) -40 to 85
Rated Current (A) 6
Tightening Torque (Nm) 0.5 to 0.8
Weight (g) 10
Operating Humidity 5 to 85%
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape PCB Terminal
Rated Operational Voltage (V) 250 AC/DC
Product Type 6 Pole Socket
Brand IDEC
Degree of Protection IP20
Humidity 5-85%
Insulation Resistance 1000 MOhm
Mounting Type PCB
Number of Poles 6
Operational Temperature -40 to 85 deg C
Rated Current 6 A
Rated Voltage 250 VAC/VDC
Shock Resistance 1000 ms
Vibration Resistance 10-55 Hz
Weight 10 g

Description

The IDEC SF1V-6-61 is a PCB socket designed for use with RF1V-6 pole relays. This socket ensures a secure and reliable connection for your relay applications, facilitating easy installation and maintenance on printed circuit boards.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
