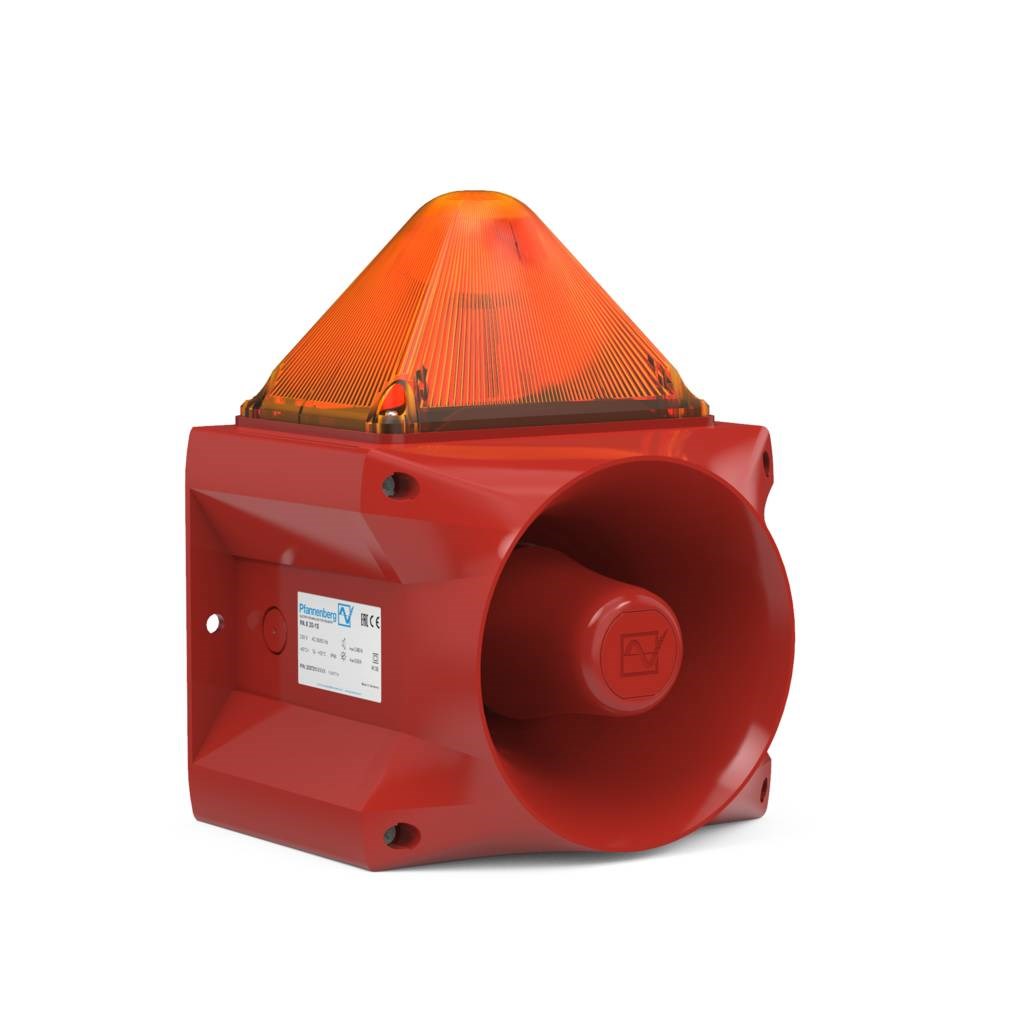

Specifications

Dimensions (mm)	214 x 270 x 181
Operational Temperature Range (°C)	-40 to +55
Rated Voltage AC (V)	230
Weight (kg)	2.298
Sound Pressure Level (dBA)	122
Current Consumption (A)	0.16 - 0.36 (For 10J)
Type of Mounting	Base Mount
Product Type	Flashing Sounder
Brand	PFANNENBERG
Ambient Temperature	-25 to 80 deg C
Cable Cross Section	0.5-2.5 sq-mm Rigid, 0.5-1.5 sq-mm Flexible
Contact Configuration	1NC+1NO
Degree of Protection	IP20, IP40
Depth	60 mm
Height	46 mm
Housing Colour	Similar to RAL 3000 (Flame Red)
Housing Material	Thermoplastic
Rated Current	8 A
Rated Insulation Voltage	400 V
Standards and Approvals	CCC, cULus, EAC, EN IEC 60204-1, EN IEC 60947-1, EN IEC 60947-5-1/-5-3/-5-5, EN IEC 62061
Terminal Type	M20 x 1.5 mm Screw
Width	10 mm
