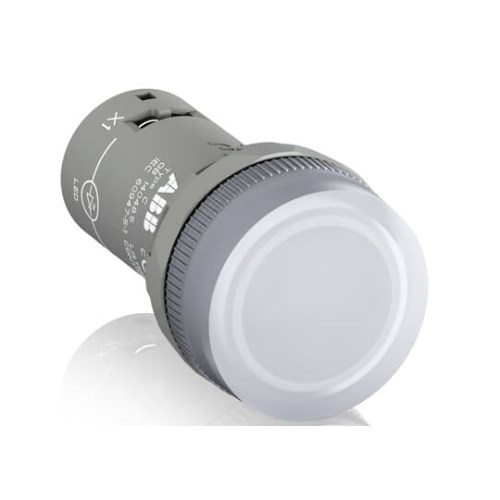

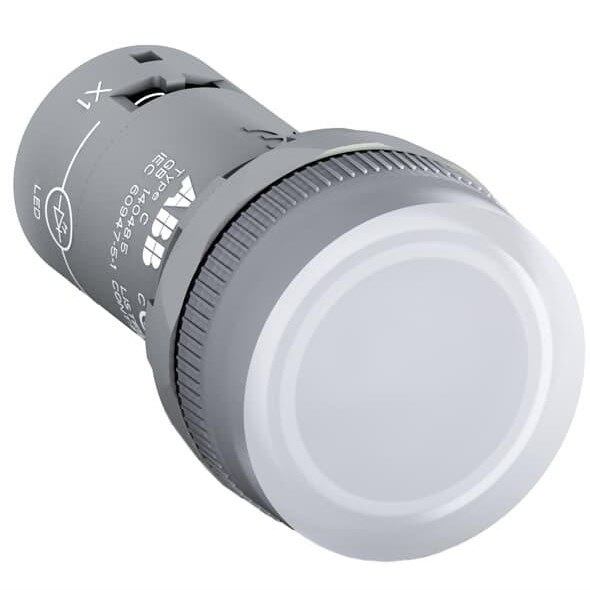

ABB CL2-520C Compact Pilot Light With Intergrated LED Clear 220VDC

Product Code: CL2-520C

  • Suitable for 24 VAC/VDC applications
  • Available in red, white, and green
  • Operating temp range: -25 to 55°C
  • High protection with IP23/IP54/IP65 ratings
  • Compliant with CE, cRUus, CSA, EN60947 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W X 30H X 52D
Operational Temperature Range (°C) -25 to +70
Rated Frequency (Hz) 50/60
Rated Voltage DC (V) 220
Tightening Torque (Nm) Control Circuit - 0.9
Lamp Not Included
Product Type Compact Pilot Light With Intergrated LED
Brand ABB
Series LD6A
Colour Red, White, Green
Degree of Pollution IP3
Degree of Protection IP23, IP54, IP65
Housing Colour Dark Grey
Housing Material ABS
Humidity 45-85%
Insulation Resistance 100 MOhm
Lamp Type Not included
LED Colour Clear
Model Integrated LED
Mounting Type Pole
Number of Tiers 3
Operational Temperature -25 to 55 deg C
Rated Insulation Voltage 60 V
Rated Voltage 24 VAC/VDC
Shock Resistance 147 ms
Standards and Approvals CE, cRUus, CSA C22.2 #14, EN60947-5-1, IEC60947-5-1, UL508
Terminal Type Screw Terminals
Vibration Resistance 10-55 Hz

Description

The Pilot Light with integrated LED Clear 220VDC from the Compact range is a high-quality product designed for engineers. This pilot light features an integrated LED and operates at 220VDC. Please note that the lamp is not included with this product.
