IDEC YW1P-2EQM3G Pilot Light With LED Green 230/240VDC 22mm Dia Mount Hole

Product Code: YW1P-2EQM3G

  • Operates on 230 VAC at 50/60 Hz
  • Illuminated with built-in LED
  • Compact size: 9.8 mm width
  • Screw clamp connection for secure fit
  • Works in -30 to 70°C environments
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Insulation Resistance (MO) 100
Operational Temperature Range (°C) -20 to +55
Rated Frequency (Hz) 50/60
Rated Voltage AC/DC (V) 230 - 240
Mounting Hole Diameter (mm) 22
Lamp Included
Product Type Pilot Light With LED
Brand IDEC
Series YW
Colour Light Yellow
Connecting Capacity 0.75-2.5 sq-mm
Connection Type Screw Clamp
Degree of Pollution IP3
Degree of Protection IP20
Depth 56 mm
Height 39.5 mm
Illumination Illuminated
Lamp Type Built-In LED
LED Colour Yellow
Model Replacement Lamp Type
Mounting Type Front
Operational Temperature -30 to 70 deg C
Rated Frequency 50/60 Hz
Rated Voltage 230 VAC
Storage Temperature -40 to 70 deg C
Terminal Type Screw
Tightening Torque 0.9 N-m
Weight 0.03 kg
Width 9.8 mm
Wire Stripping Length 8 mm

Description

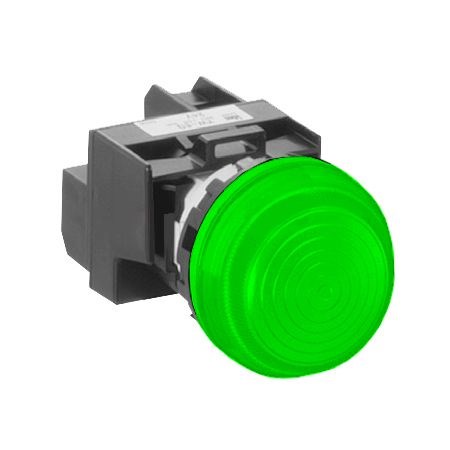

The IDEC YW1P-2EQM3G is a green dome-type pilot light designed for clear signaling with its long-lasting LED lamp. Operating on 230/240VAC/DC, it ensures energy efficiency and low heat emission. The unit features a 22mm mounting option for straightforward installation and IP20 finger-safe terminals to enhance user safety. This durable pilot light is suitable for various industrial applications where reliable status indication is essential.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
