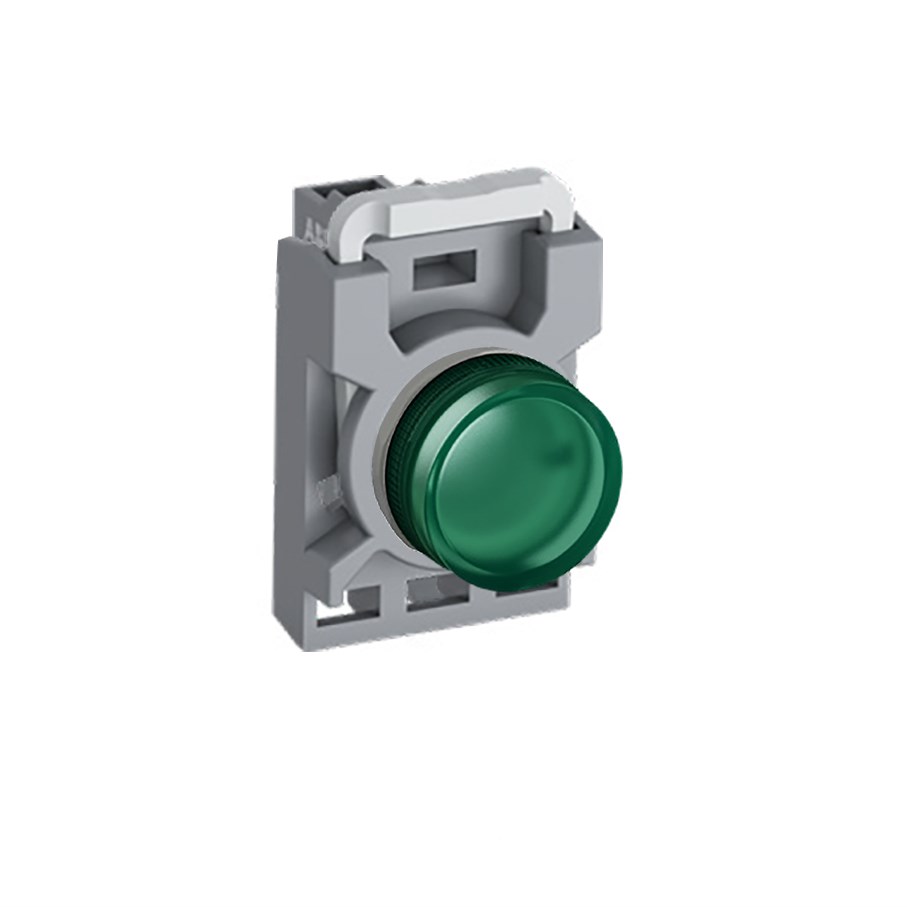

ABB MPLG1 Pilot Light Kit with Built-In LED Green 24VDC

Product Code: MPLG1

  • Illuminated pilot light with built-in LED
  • Rated for 415 VAC, 50/60 Hz operation
  • Compact size: 10 mm width, 44 mm height
  • Screw clamp connection for secure fit
  • Operates in temps from -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Voltage AC/DC (V) 24
LED Block Rated Voltage 24VAC/DC
Bezel Material Plastic
Product Type Pilot Light Kit
Brand ABB
Ambient Temperature -25 to 70 deg C
Colour White
Connecting Capacity 1/2 x 0.75-2.5 sq-mm Flexible with Ferrule, 1/2 x 0.75-2.5 sq-mm Flexible with Insulated Ferrule, 1/2 x 0.75-2.5 sq-mm Flexible, 1/2 x 0.75-2.5 sq-mm Solid
Connection Type Screw Clamp
Degree of Protection IP20
Depth 42 mm
Height 44 mm
Illumination Illuminated
Lamp Type Built-In LED
LED Colour White
Mounting Type Front
Operational Temperature -25 to 70 deg C
Power Loss 4.2 W
Rated Frequency 50/60 Hz
Rated Voltage 415 VAC
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 0.9 N-m
Width 10 mm
Wire Stripping Length 8 mm

Description

The Pilot Lights kit Green 12VAC/DC is a part of the modular plastic range. It is designed for engineers and comes with a green light indicator. The kit operates on both 12VAC and 12VDC power sources.
