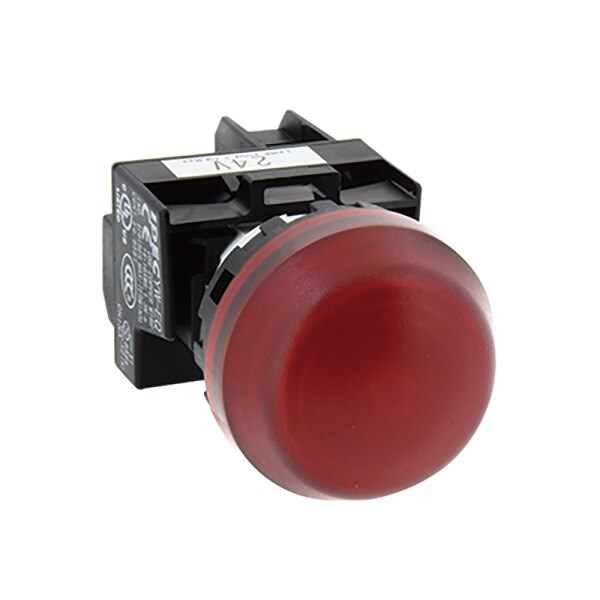

When selecting a pilot light for industrial or commercial applications, it is essential to focus on specifications that align with your operational requirements. This particular pilot light stands out with its efficient and practical design, ensuring reliability in various settings.
Operating at a rated voltage of 24 VAC and supporting both 50/60 Hz frequencies, this illuminated pilot light offers versatility for different electrical systems. It features a vibrant green LED illumination which enhances visibility and ensures clear signaling.
The compact dimensions—9.8 mm in width, 39.5 mm in height, and 56 mm in depth—make it suitable for installations where space is limited without compromising performance. Additionally, the unit is designed to withstand harsh environments with an operational temperature range from -30°C to 70°C and storage capabilities down to -40°C.
Installation is straightforward due to its front mounting type and screw clamp connection system. The terminal type uses screws with a tightening torque of 0.9 N-m, providing secure connections while accommodating wire sizes between 0.75-2.5 sq-mm efficiently.
In terms of protection ratings, this pilot light holds an IP20 degree of protection against solid objects over 12mm but should be installed in environments where exposure to moisture or dust isn’t prevalent as per the IP3 pollution degree rating.
Weighing only 0.02 kg, it's lightweight yet robust enough for continuous use across varied applications within its specified parameters.
To ensure optimal performance during installation, adhere to the recommended wire stripping length of 8 mm which facilitates proper connection integrity.
This combination of features makes this pilot light a reliable choice for professionals seeking durability coupled with ease-of-use in their control panels or machinery interfaces.
