Specifications

LED Block Rated Voltage	6 VAC/DC
Bezel Material	Metal

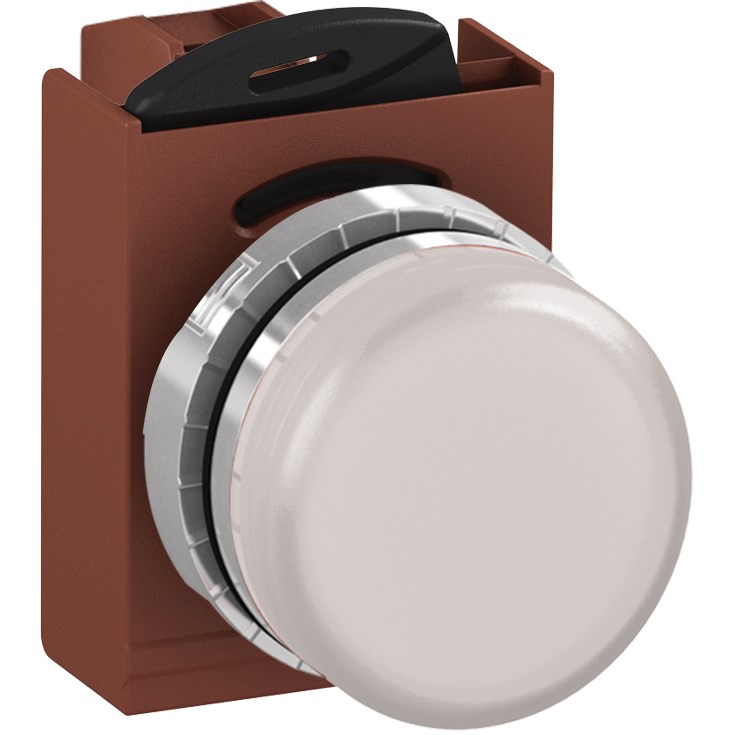

Product Type	Pilot Light Kit
Brand	ABB
Colour	White
Connecting Capacity	Flexible with Ferrule 1 x 0.75...2.5 sq-mm, Flexible with Ferrule 2 x 0.75...2.5 sq-mm, Flexible with Insulated Ferrule 1 x 0.75...2.5 sq-mm, Flexible with Insulated Ferrule 2 x 0.75...2.5 sq-mm, Flexible 1 x 0.75 ... 2.5 sq-mm, Flexible 2 x 0.75 ... 2.5 sq-mm, Solid 1 x 0.75...2.5 sq-mm, Solid 2 x 0.75...2.5 sq-mm
Connection Type	Screw Clamp
Contact Configuration	1NC
Degree of Pollution	IP3
Degree of Protection	IP20
Illumination	Non-Illuminated
Light Blocks Type	Power Supply
Mounting Type	Front
Operational Temperature	-25 to 70 deg C
Power Loss	2.5 W
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Voltage	690 V
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Tightening Torque	0.9 N-m
Wire Stripping Length	8 mm
