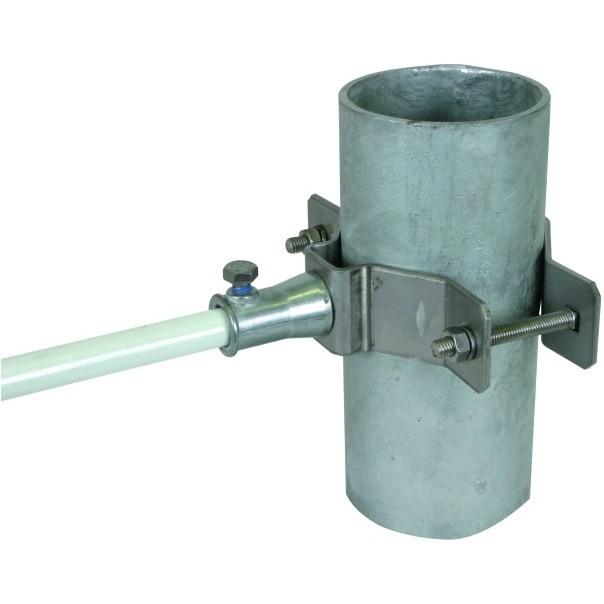

DEHN 106353 Pipe Clamp W/Socket 10mm W 4mm D 16mm H M8 x 70mm M8 x 12mm Die Cast Zinc 304 Stainless Steel

Product Code: 106353

  • Designed for isolated lightning protection systems
  • Constructed from die-cast zinc & 304 stainless steel
  • Compact size: 10mm W x 16mm H x 4mm D
  • Features M8 x 70 mm and M8 x 12 mm threads
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Suitable For Isolated Lightning Protection
Weight (kg) 0.466
Dimensions (mm) 10W x 16H x 4D
Accessory Type Clamp
Clamping Range (mm) 70 - 90
Surface Protection Untreated
Product Type Pipe Clamp With Socket
Brand DEHN
Depth 4 mm
Finish Untreated
Height 16 mm
Material Die Cast Zinc, 304 Stainless Steel
Suitable For Use With Isolated Lightning Protection
Thread Size M8 x 70 mm, M8 x 12 mm
Weight 0.466 kg
Width 10 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
