IDEC YW1P-2EH22G Pilot Light Green 115/120VAC 22mm Dia Mount Hole

Product Code: YW1P-2EH22G

  • Pilot light with momentary actuation
  • Contact config: 1NO+2NC
  • Maintained positions: A, B, C
  • Spring return from A and C to B
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Operating Voltage DC (V) 115/120
Operating Voltage AC (V) 115/120
Dimensions (mm) 29.6W x 24H x 78.8D
Product Type Pilot Light
Brand IDEC
Actuation Type Momentary
Colour Green
Contact Configuration 1NO+2NC
Degree of Protection IP65
Maintained Position A, B, C
Model Dome Transformer - With LED Lamp
Number of Positions 3
Spring Return Position A and C to B

Description

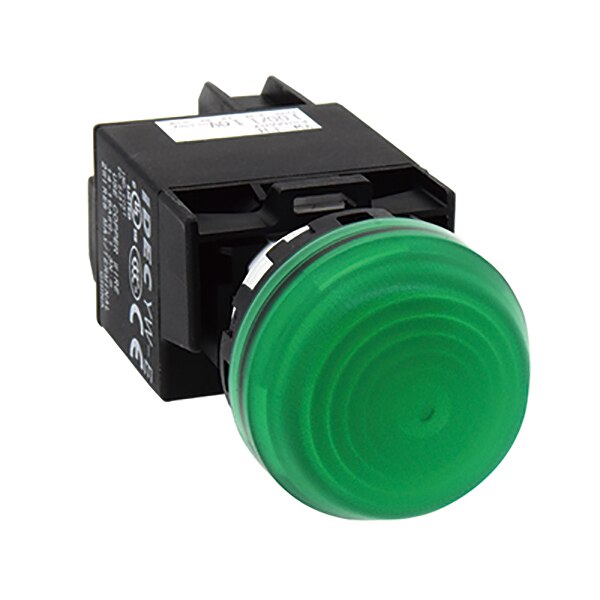

The IDEC YW1P-2EH22G is a green, 22mm pilot light dome designed for efficient use of space with its compact and lightweight structure. It features a metal bezel and a unibody design that simplifies installation and maintenance due to the removable operator and separate contact block. The large lens of the pilot light ensures visibility from a wide angle, making it an ideal indicator for various applications.
