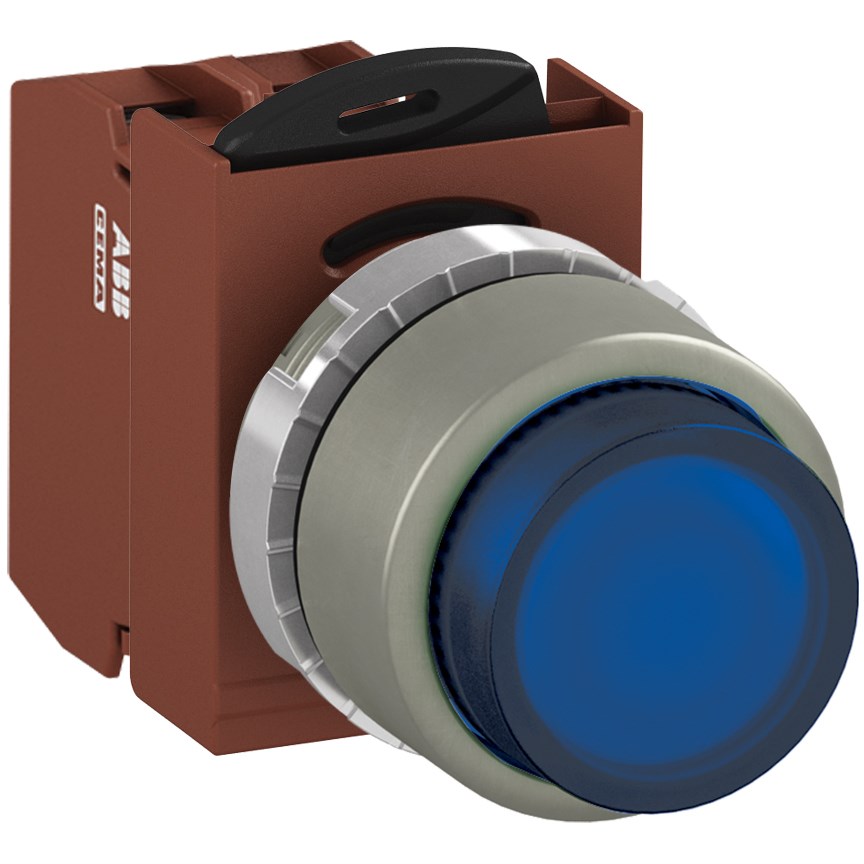

ABB MMPIELAFP310 Illuminated Pushbutton Kit 22mm Extended Maintained Blue 110VAC/DC 1NO Faston Power Supply

Product Code: MMPIELAFP310

  • Operates at 110 VAC/DC with blue illumination
  • IP66 protection for harsh environments
  • Extended actuator, maintained function
  • Suited for mining and heavy industries
  • Faston connection, metal bezel, 22mm cutout
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
LED Block Rated Voltage 110 VAC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Blue
Connection Type Faston
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Maintained
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Blue
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
