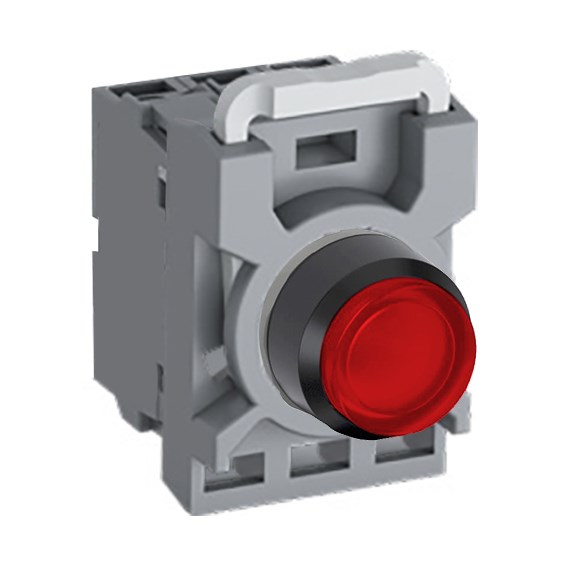

For those in the industrial and commercial sectors seeking a reliable illuminated switch, this product provides a robust solution. It operates within a rated voltage of 110-130 VAC/DC, making it versatile for various applications. The illumination feature is powered by a red LED lamp, ensuring visibility and clarity during operation.
The switch boasts an impressive degree of protection with IP66 at the front, safeguarding against dust and strong jets of water. Its terminal is rated at IP20, providing basic protection from finger contact. These features make it suitable for environments where durability and safety are paramount.
Complying with multiple standards such as EN IEC 60947 series, UL 508, and CSA C22.2 No. 14 ensures that this product meets rigorous international quality and safety benchmarks. It's designed to withstand ambient temperatures ranging from -25 to 70 degrees Celsius, offering reliability across diverse climates.
The contact configuration is set at 2NC (normally closed), which could be crucial for specific control circuit requirements. With a rated insulation voltage of 690 V and an impulse withstand voltage of 6 kV, it's engineered to handle substantial electrical loads safely.
The actuator type is extended with a diameter of 22 mm matching the cutout size for streamlined installation processes. This maintained function switch includes components like the operator, contact block, contact block holder, and LED block—all crafted for seamless integration into your system.
Rated with a thermal current capacity of up to 10 A and featuring a plastic bezel material adds another layer of functionality without compromising on aesthetic or structural integrity.
This detailed specification makes it clear why many professionals choose this product when durability combined with high performance is required in their operations.
