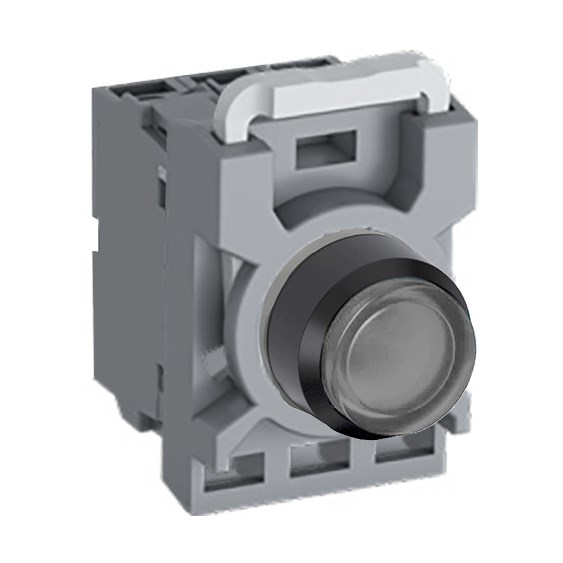

ABB MPPIECO211 Illuminated Pushbutton Kit 22mm Extended Momentary Clear 110-130VAC/DC 1NO+1NC

Product Code: MPPIECO211

  • Operates on 110-130 VAC/DC with clear LED illumination
  • IP66 front protection for robust performance
  • Extended actuator with momentary function
  • Includes operator, contact block, and LED block
  • Complies with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
LED Block Rated Voltage 110-130 VAC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Colour Clear
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Clear
Lamp Type LED
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110-130 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
