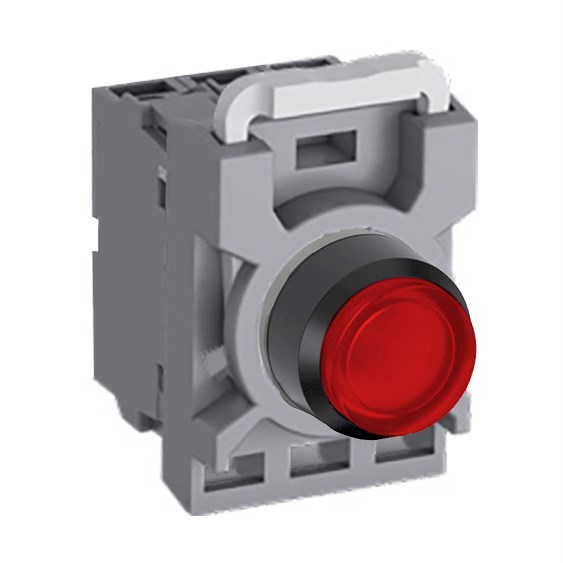

ABB MPPIERO420 Illuminated Pushbutton Kit 22mm Extended Momentary Red 230VAC/DC 2NO

Product Code: MPPIERO420

  • Operates at 230 VAC/DC with LED illumination
  • IP66 front protection for robust use
  • Momentary function with extended actuator
  • Red LED lamp in a 22 mm cutout
  • Includes operator, contact block & holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
LED Block Rated Voltage 230 VAC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Colour Red
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Red
Lamp Type LED
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14
