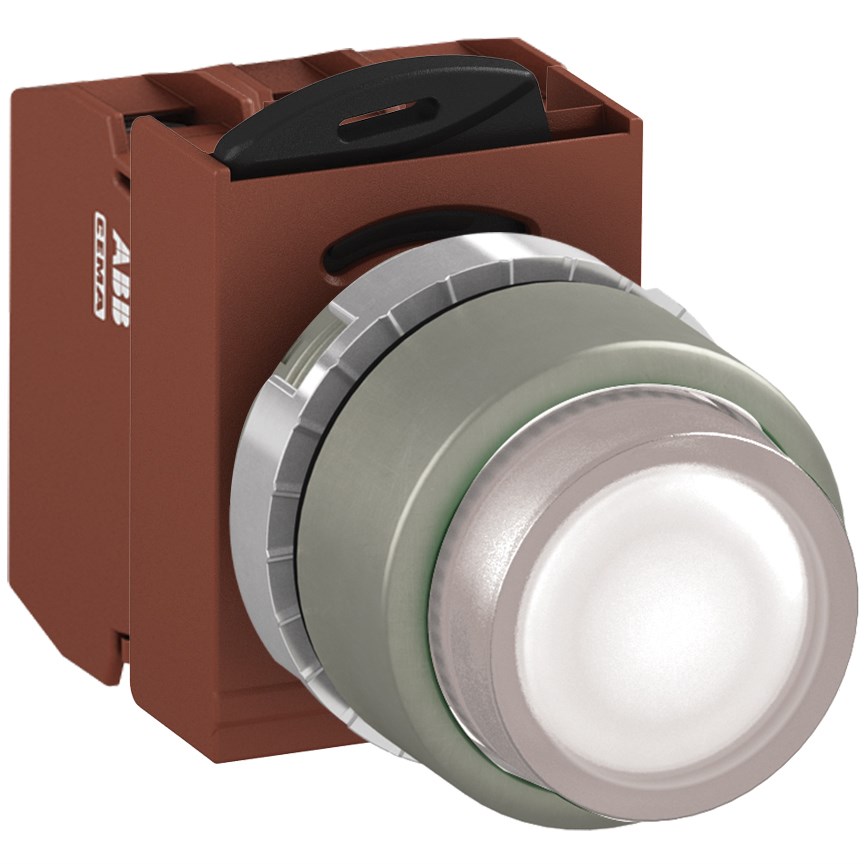

ABB MMPIEWOSL420 Illuminated Pushbutton Kit 22mm Extended Momentary White 230VAC/DC 2NO Screw LED Block

Product Code: MMPIEWOSL420

  • Rated for 230 VAC/DC with IP66 protection
  • Operates in -30 to 70°C environment
  • Features a 22 mm LED illuminated actuator
  • Equipped with a durable metal bezel
  • Suitable for mining and heavy industry use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
LED Block Rated Voltage 230 VAC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour White
Connection Type Screw
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour White
Lamp Type LED
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
