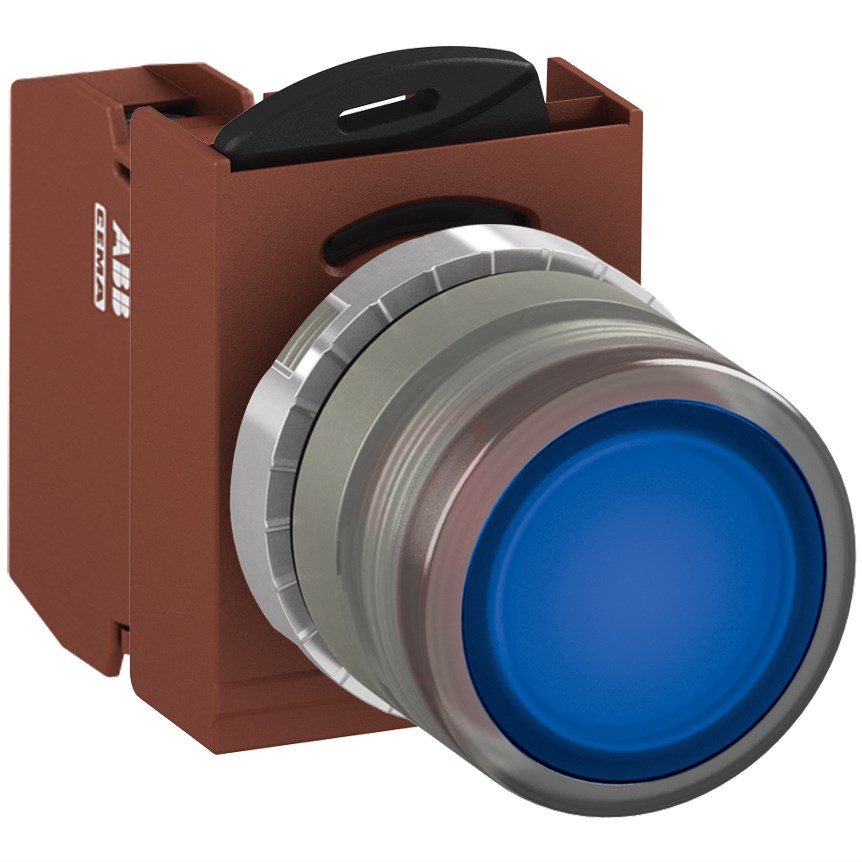

ABB MMPIFLASP001 Illuminated Pushbutton Kit 22mm Flush Maintained Blue 6VAC/DC 1NC Screw Power Supply

Product Code: MMPIFLASP001

  • Operates at 6 VAC/DC, illuminated with blue lamp
  • IP66 rated for robust protection in tough environments
  • Flush actuator with 22 mm diameter and cutout size
  • Suitable for mining, construction, heavy industry use
  • Includes operator, contact block, and power supply
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
LED Block Rated Voltage 6 VAC/DC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Blue
Connection Type Screw
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Maintained
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Blue
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 6 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
