Product Code: MPPIFCA010

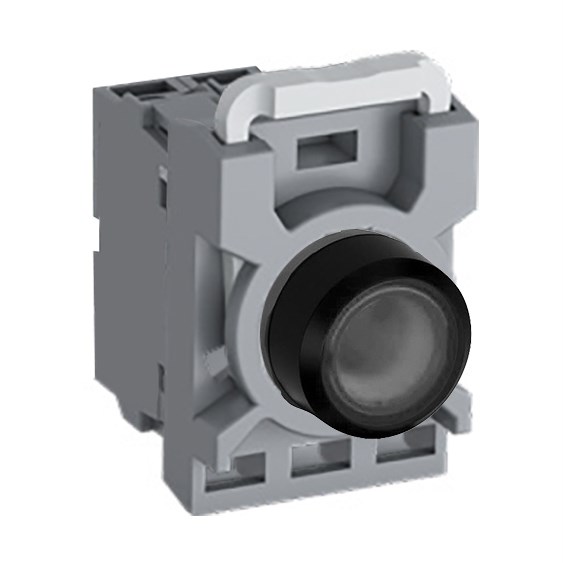

Illuminated pushbutton with clear LED lamp
IP66 front protection for harsh environments
Operates at 12 VAC/DC with maintained function
Flush actuator, 22 mm diameter cutout size
Includes operator, contact block & holder

Specifications

Contacts	1NO
Rated Voltage DC (V)	12
LED Block Rated Voltage	12 VDC
Bezel Material	Plastic
Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Flush
Ambient Temperature	-25 to 70 deg C
Bezel Material	Plastic
Colour	Clear
Contact Configuration	1NO
Cutout Size	22 mm
Degree of Protection	IP66 Front, IP20 Terminal
Diameter	22 mm
Function	Maintained
Illumination	Illuminated
Includes	Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour	Clear
Lamp Type	LED
LED Colour	White
Mode of Operation	Maintained
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	12 VAC/DC
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Pushbutton Kit is a clear flush maintained switch with an integrated white LED. It operates on 12VDC and has a 1NO contact. This kit is part of a modular plastic range and features front IP66 protection and terminals with IP20 protection.
