Product Code: MPPIFGA310

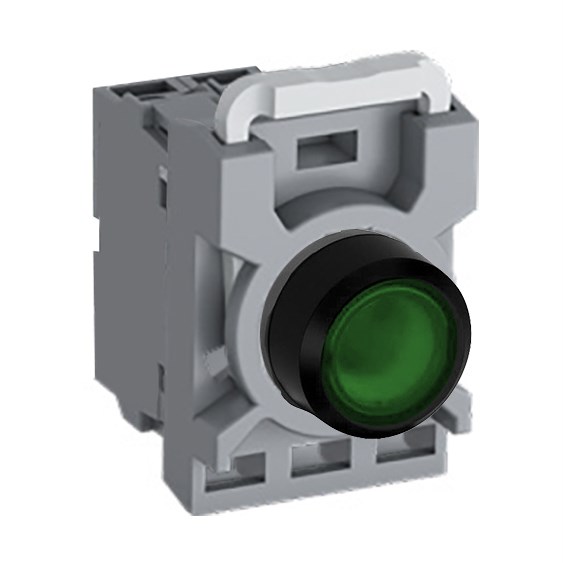

Illuminated pushbutton with green LED lamp
IP66 front protection for harsh environments
Flush actuator design, 22 mm diameter
Operates at -25 to 70°C ambient temp
Complies with multiple international standards

Specifications

Contacts	1NO
Rated Voltage DC (V)	220
LED Block Rated Voltage	220 VDC
Bezel Material	Plastic
Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Flush
Ambient Temperature	-25 to 70 deg C
Bezel Material	Plastic
Colour	Green
Contact Configuration	1NO
Cutout Size	22 mm
Degree of Protection	IP66 Front, IP20 Terminal
Diameter	22 mm
Function	Maintained
Illumination	Illuminated
Includes	Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour	Green
Lamp Type	LED
LED Colour	Green
Mode of Operation	Maintained
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	220 VDC
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This illuminated pushbutton kit features a green flush design and is equipped with an integrated green LED. It operates on 220V DC power and has a 1NO contact configuration. The pushbutton is part of a modular plastic range and has an IP66 front rating for protection against dust and water, while the terminals have an IP20 rating.
