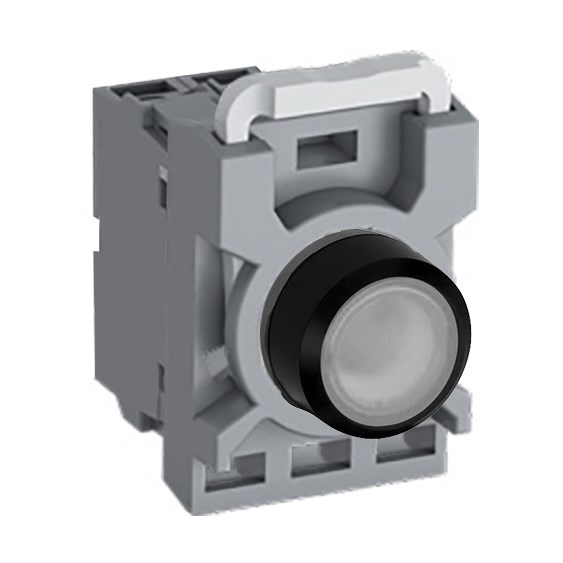

ABB MPPIFWA410 Illuminated Pushbutton Kit 22mm Flush Maintained White 230VAC/DC 1NO

Product Code: MPPIFWA410

  • Illuminated pushbutton with white LED
  • IP66 front protection for durability
  • Operates on 230 VAC/DC
  • Flush actuator design, 22 mm diameter
  • Maintained function with 1NO contact
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Rated Frequency (Hz) 50/60
Rated Voltage AC (V) 230
LED Block Rated Voltage 230 VAC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Colour White
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Maintained
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour White
Lamp Type LED
LED Colour White
Mode of Operation Maintained
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This Illuminated Pushbutton is a part of the Modular Plastic Range kit. It features a White Maintained Flush design with 1 Normally Open (NO) contact. The kit includes an operator, contact blocks, a contact block holder, and an LED block. This pushbutton operates at 230VAC.
