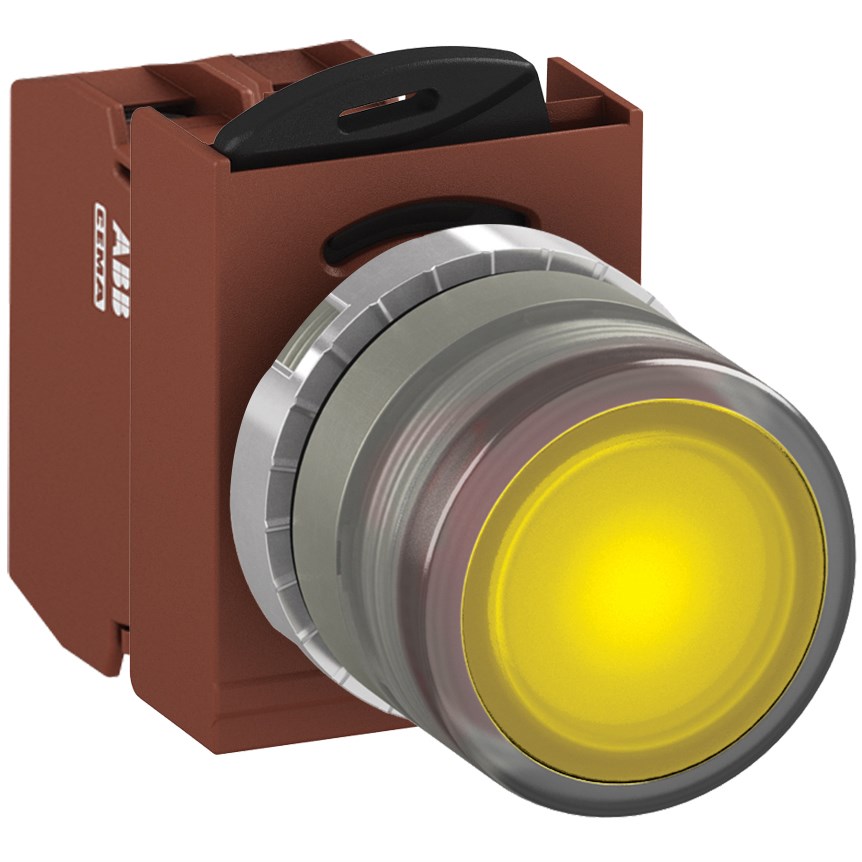

ABB MMPIFYASL301 Illuminated Pushbutton Kit 22mm Flush Maintained Yellow 110VAC/DC 1NC Screw LED Block

Product Code: MMPIFYASL301

  • Illuminated LED with yellow lamp
  • IP66 protection for harsh conditions
  • Operates in -30 to 70°C temperature range
  • 22 mm flush actuator design
  • Suitable for mining and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
LED Block Rated Voltage 110 VAC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Yellow
Connection Type Screw
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Maintained
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour Yellow
Lamp Type LED
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
