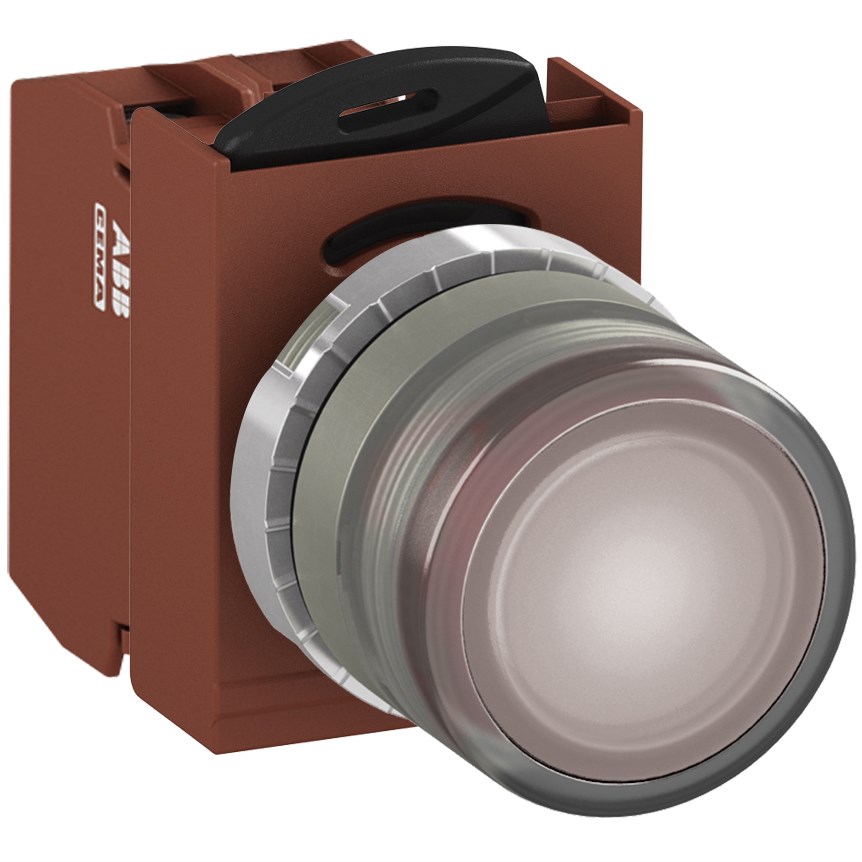

ABB MMPIFCOSL310 Illuminated Pushbutton Kit 22mm Flush Momentary Clear 110VAC/DC 1NO Screw LED Block

Product Code: MMPIFCOSL310

  • IP66 rated for robust protection
  • Operates at 110 VAC/DC with LED illumination
  • Suitable for extreme temperatures from -30 to 70°C
  • Features a flush actuator with a clear LED lamp
  • Ideal for mining, construction, and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
LED Block Rated Voltage 110 VAC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Clear
Connection Type Screw
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour Clear
Lamp Type LED
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
