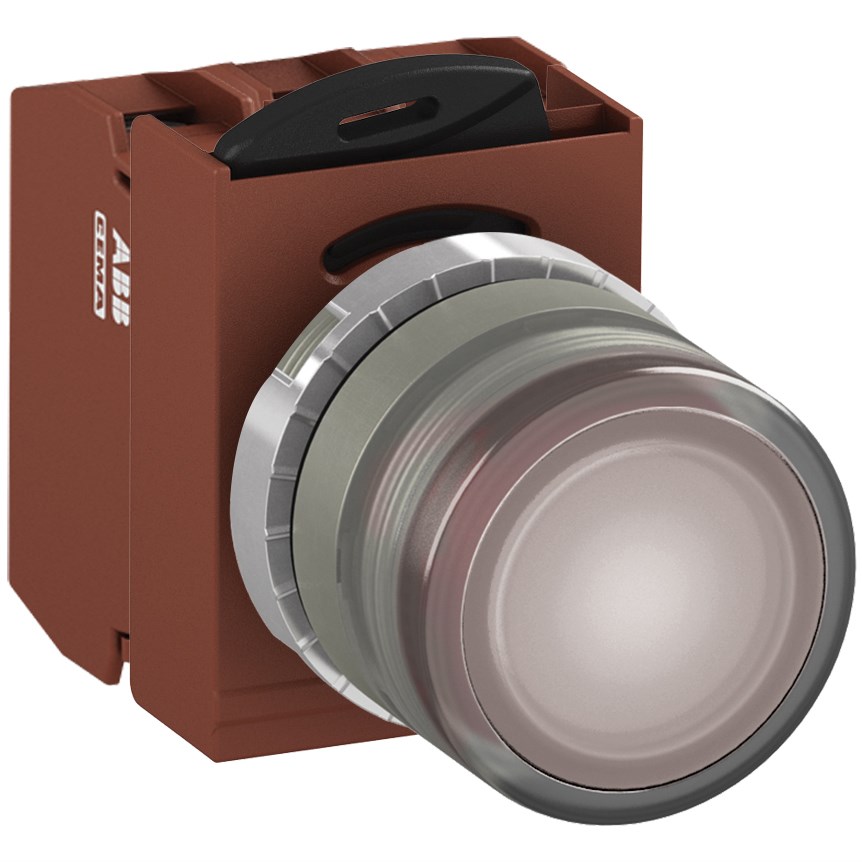

ABB MMPIFCOSP320 Illuminated Pushbutton Kit 22mm Flush Momentary Clear 110VAC/DC 2NO Screw Power Supply

Product Code: MMPIFCOSP320

  • Operates at 110 VAC/DC with clear illumination
  • High protection rating of IP66 for harsh environments
  • Suitable for mining, construction, heavy industry
  • Robust metal bezel with 22 mm flush actuator
  • Complies with multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
LED Block Rated Voltage 110 VAC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Clear
Connection Type Screw
Contact Configuration 2NO
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Clear
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
