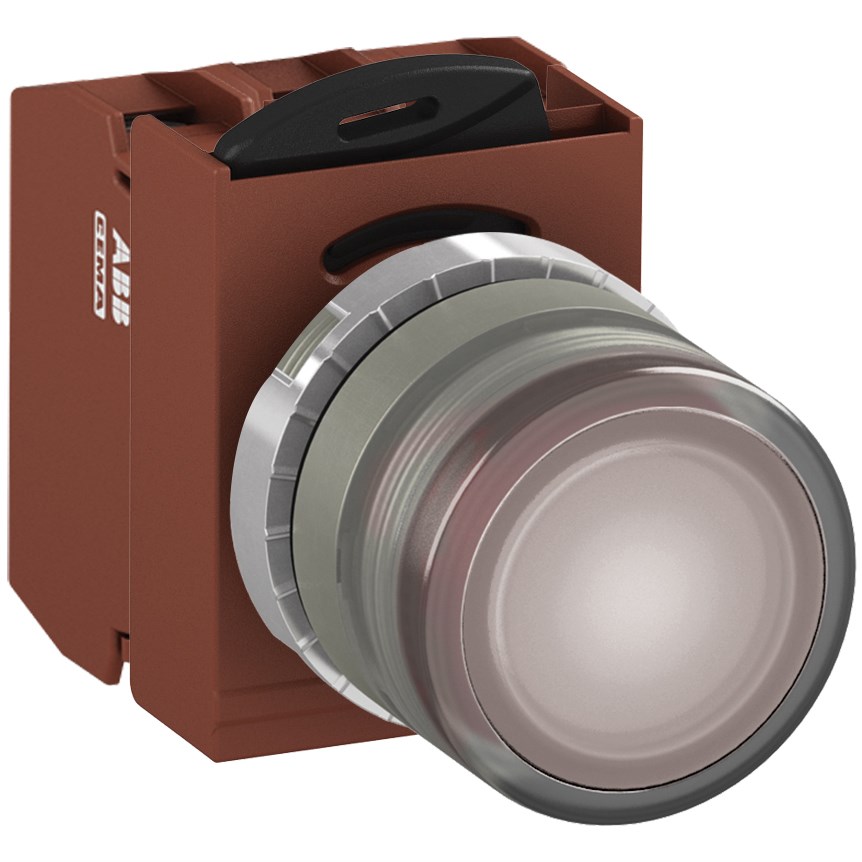

ABB MMPIFCOFP220 Illuminated Pushbutton Kit 22mm Flush Momentary Clear 24VAC/DC 2NO Faston Power Supply

Product Code: MMPIFCOFP220

Operates at 24 VAC/DC with IP66 protection
Suitable for mining and heavy industry
Flush actuator, 22 mm diameter cutout
Clear BA9S lamp, momentary function
Includes operator, contact block, power supply

Specifications

Contacts	2NO
LED Block Rated Voltage	24 VAC/DC
Bezel Material	Metal
Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Flush
Ambient Temperature	-30 to 70 deg C
Application	For mining, construction and heavy industry applications
Bezel Material	Metal
Colour	Clear
Connection Type	Faston
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66
Diameter	22 mm
Function	Momentary
Illumination	Illuminated
Includes	Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour	Clear
Lamp Type	BA9S
Light Blocks Type	Power Supply
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	24 VAC/DC
Standards and Approvals	EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
